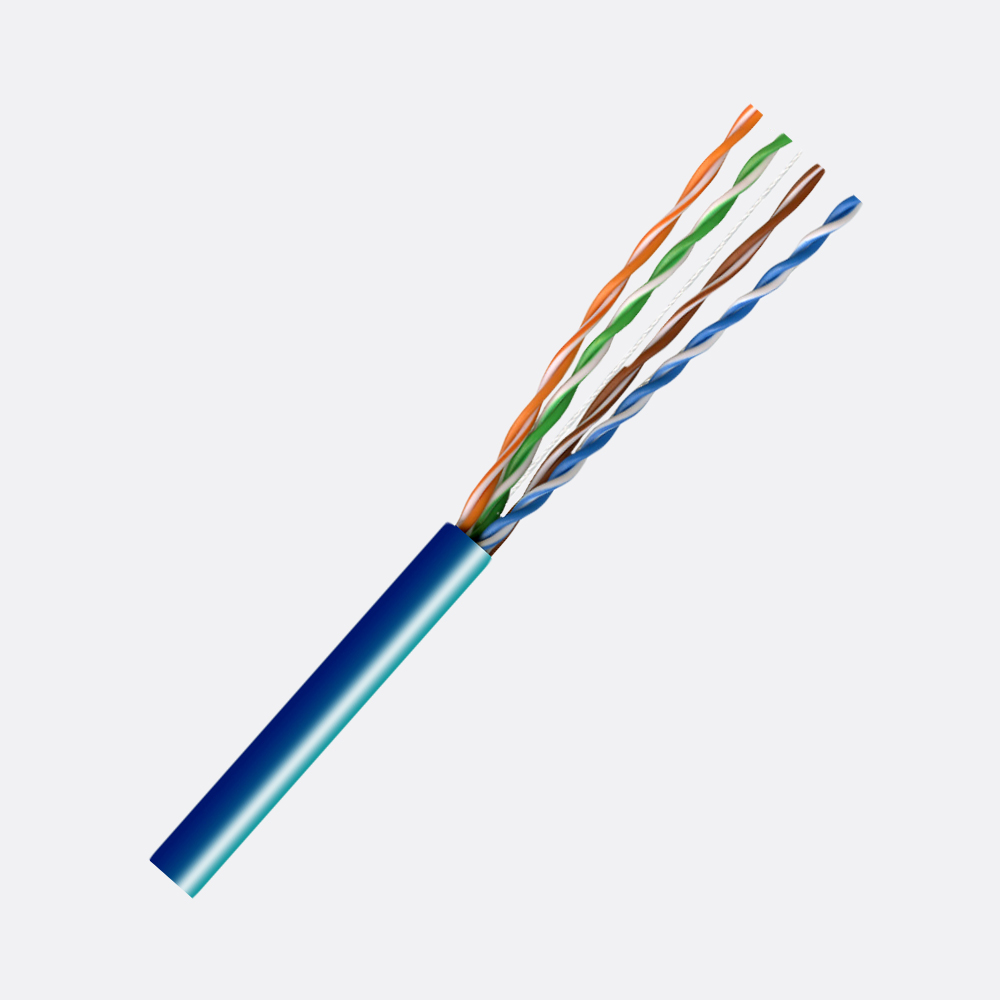

CAT5E – DPZ81051

HDPE Insulated UTP, FTP, STP and External rated

CCTV, Network Solutions, Access Control, Data Transmission.

Specification Sheet:
  Click to download specifications

4 Pair 0.51 nom P.A.C.W. Polyolefin insulated.
PVC sheathed. Category 5 Enhanced unshielded cable.


Conductor: 1 strand of nominal 0.51 mm Plain Annealed Copper.
Max. D.C. resistance at 20C : 92.27 ohms / klm.

Insulation: Coloured Data Grade Polyolefin.
Nominal Diameter: 0.9 mm.
Min. Wall Thickness: 0.16 mm.

Lay Up: 4 Pairs individually twisted at staggered lays and laid up.
Pair 1 Blue + White/Blue
Pair 2 Orange + White/Orange
Pair 3 Green + White/Green
Pair 4 Brown + White/Brown

Sheath: Coloured PVC.
Nominal Diameter: 5.1 mm.
Nom. Wall Thickness: 0.6 mm.

Typical Capacitance: 50 pF/m

Typical Impedance: 100 ohms

Note: Is to meet characteristics of level 5 enhanced.
