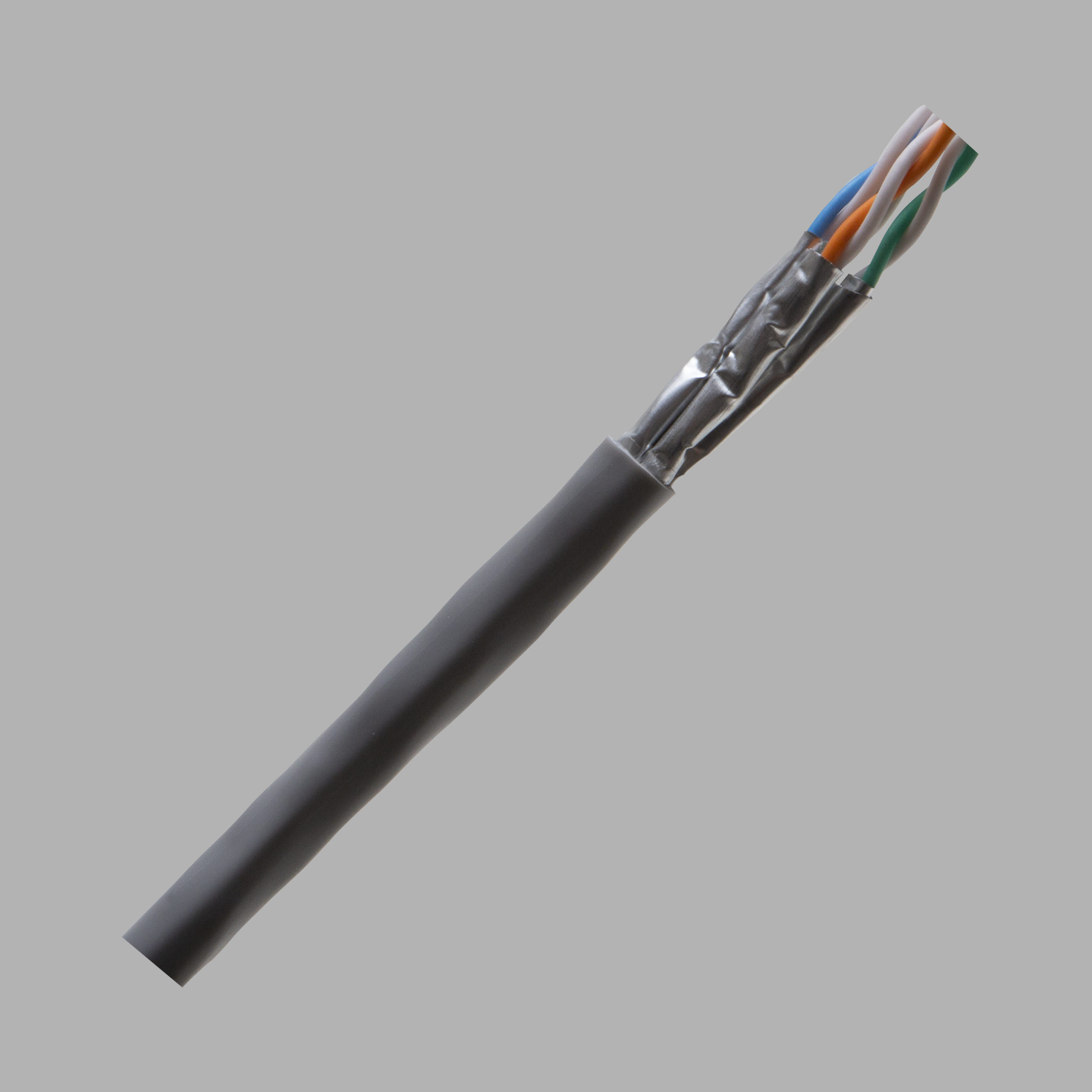

U/FTP 4 pairs cable – Category 6A – PVC Sheath Data Sheet
Category: U/FTP-CAT6A-4P-PVC
Test Standard: TIA/EIA 568-B.10
Construction
Conductor:
Material: SOLID-Bare Copper
Nom. O.D. (mm): 0.560
Up: +0.005
Down: -0.005
Insulation:
Material: Skin-Foam-Skin PE
Diameter: 1.34±0.05mm
Screening:
Material: Aluminium Foil
Drain Wire: No
Sheath:
Thickness: 0.55±0.05 mm
External: O.D. 7.5±0.5 mm
Surface: Clean
Material: PVC, RoHS compliant
Colour: Grey
Surface Printing:
Letter height: 3.0±0.3mm
Colour: Black
Print error & Space: ≤±0.5%,1m
Core Colour:
1. White/Blue
2.White/Orange
3.White/Green
4.White/Brown
Packing: Plywood Spool
Packing Length: 305±1.0m
Sheath Physical Properties:
Before Aging:
Tensile Strength: (Mpa) ≥13.5
Elongation (%): ≥150
Aging Period (°C×hrs): 100°C×24h×7d
After Aging
Tensile Strength: (Mpa) ≥12.5
Elongation (%): ≥125
Cold Bend: (-20±2°C×4h) , 8xCable OD, No visible cracks
Electrical Characteristics (20°C):
Delay Shew 20°C(ns/100m): ≤45
Velocity of Propagation (%): 68
DC Resistance 20°C(Ω/100m) max: 7.2
DC Conductor Resistance Unbalance (%) max: 2.0
Identification: TYCAB NEW ZEALAND – CAT6A LAN CABLE – DPXA81051 METER MARKING
