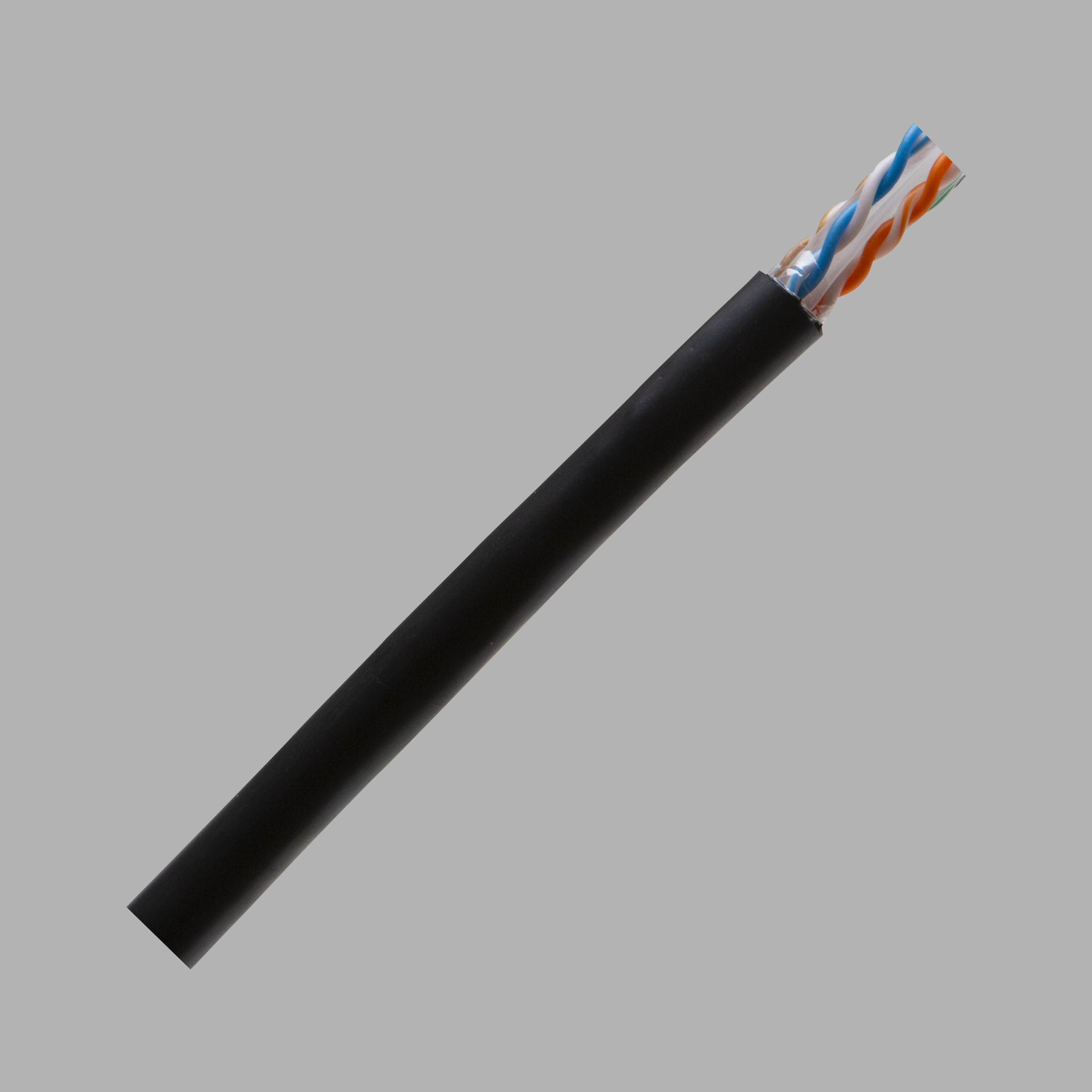

CAT6 External Screened – DPAS81051

HDPE Insulated UTP, FTP, STP and External rated

CCTV, Network Solutions, Access Control, Data Transmission.

Specification Sheet:
  Click to download specifications

F/UTP 4 pairs cable – Category 6 – 250MHz – PE Sheath

Category: F/UTP CAT6-4P-PE

Test Standard: ISO/IEC11801、TIA-568-C.2 YD/T 1019 It will be printed as customer’s requirement with batch production.



Material: oxygen-free copper
Nom. O.D. (mm): 0.57

Up: +0.005
Down: -0.005


Material: HDPE
1.09±0.03 mm


Material: Aluminum Foil

A. Blue, White-Blue
B. Orange, White-Orange
C. Green, White-Green
D. Brown, White-Brown

Inner Jacket:

Material: PVC Color According to the requires Technical Performance (100m):
Thickness: 0.55±0.05 mm


Thickness: 0.60±0.05mm
External: O.D. 7.4±0.4 mm
Surface: Clean, Frap, Satiation
Material: PE
Color: Black

Surface Printing:

Letter height: 3.0±0.3mm
Color: Black
Print error & Space: ≤±0.5%,1m

Core Coloure:
1 White- Blue /Blue
2 White-Orange /Orange
3 White- Green /Green
4 White- Brown /Brown

Packing: As per customer’s requirement

Carton Dimension: According to the requires

Wooden Tray Dimension: According to the requires

Packing Length: 305±1.5m

Rip-cord: Yes
Drain Wire: Yes

Sheath Physical Properties:

Before Aging:

Tensile Strength: (Mpa) ≥10
Elongation: (%) ≥150

Aging Period (°C×hrs): 100°C×24h×10d
After Aging Elongation: (%) ≥300
Cold bend (-20±2°C×4h): 8×Cable O.D. No visible cracks

Electrical Characteristics (20°C):

1.0-100.0MHz Impedance (Ω): 100±15
1.0-100.0MHz Delay Shew (ns/100m): ≤45
unbalanced-to-ground capacitance (pf/100m) max: 330
DC Resistance (Ω/100m) max: 9.38
DC Conductor Resistance Unbalance (%) max: 5.0

Identification: It will be printed as customer’s requirement with batch production.
