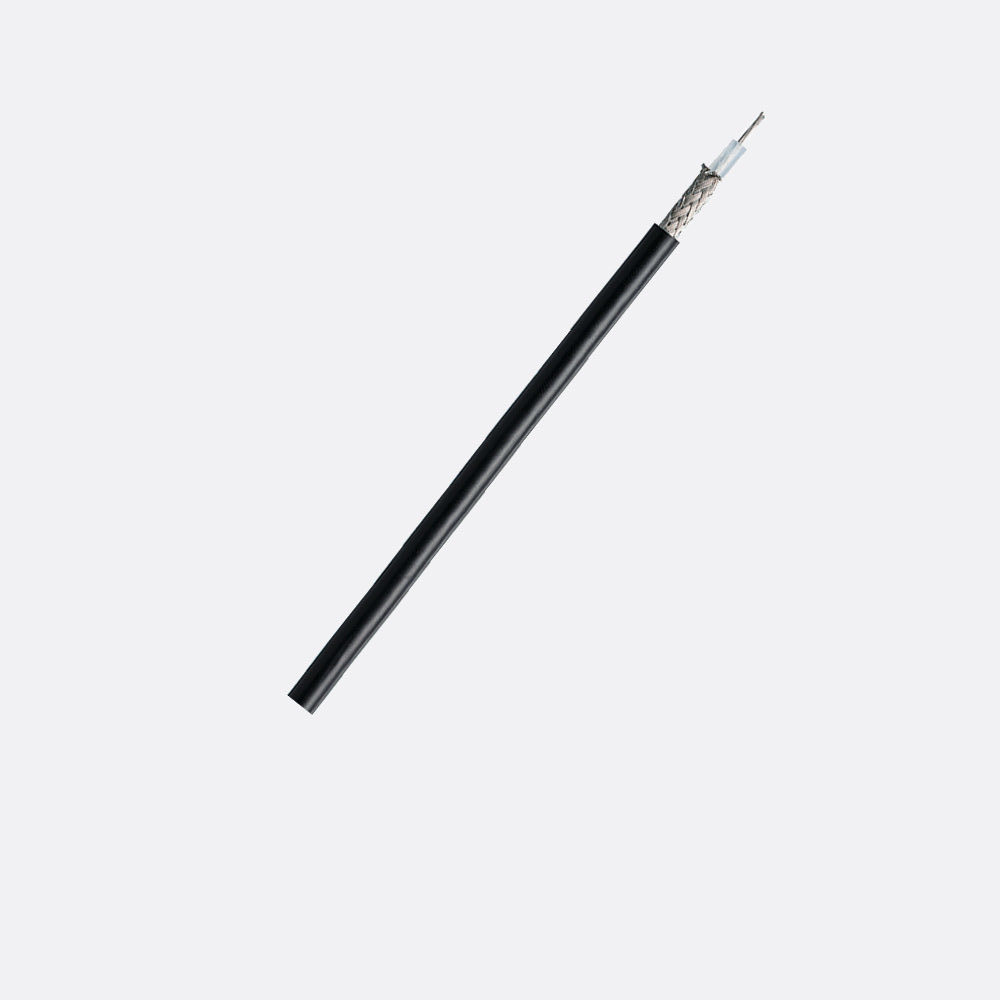

RG58 – CCF119018


Low-density Polyethylene Insulation

Applications
CCTV, Signal cable.

Specification Sheet:
  Click to download specifications

50-ohm coaxial cable.RG58C/U type Flexible annealed tinned copper conductor, solid polyethene insulation, Tinned Copper braid.
Non – contaminating PVC sheath. Manufactured in general accordance with MIL-C-17/28C.

Construction

Conductor: 19 strands of 0.18 mm Tinned Annealed Copper drawn from Class 110A copper to AS1574.
Overall Diameter : 0.9 +/- 0.05 mm.

Insulation: Solid Low-Density Polyethylene.
Nominal Diameter : 2.95 mm +/- 0.1mm.

Screen: Tinned Annealed Copper Braid to a min. coverage of 95%. (16x7x0.12mm).

Sheath: Coloured non-contaminating P.V.C.
Nominal Diameter : 4.95 mm +/- 0.1mm.

Identification: TBA

Electrical Characteristics:
Typical Impedance : 50 +/-2 ohms.
Typical Capacitance at 1khz: 101 pF/m.
Velocity of propagation ratio: 66 %.
