RG59 – CCE11057

Low-density Polyethylene Insulation

CCTV, Signal cable.

Specification Sheet:
  Click to download specifications

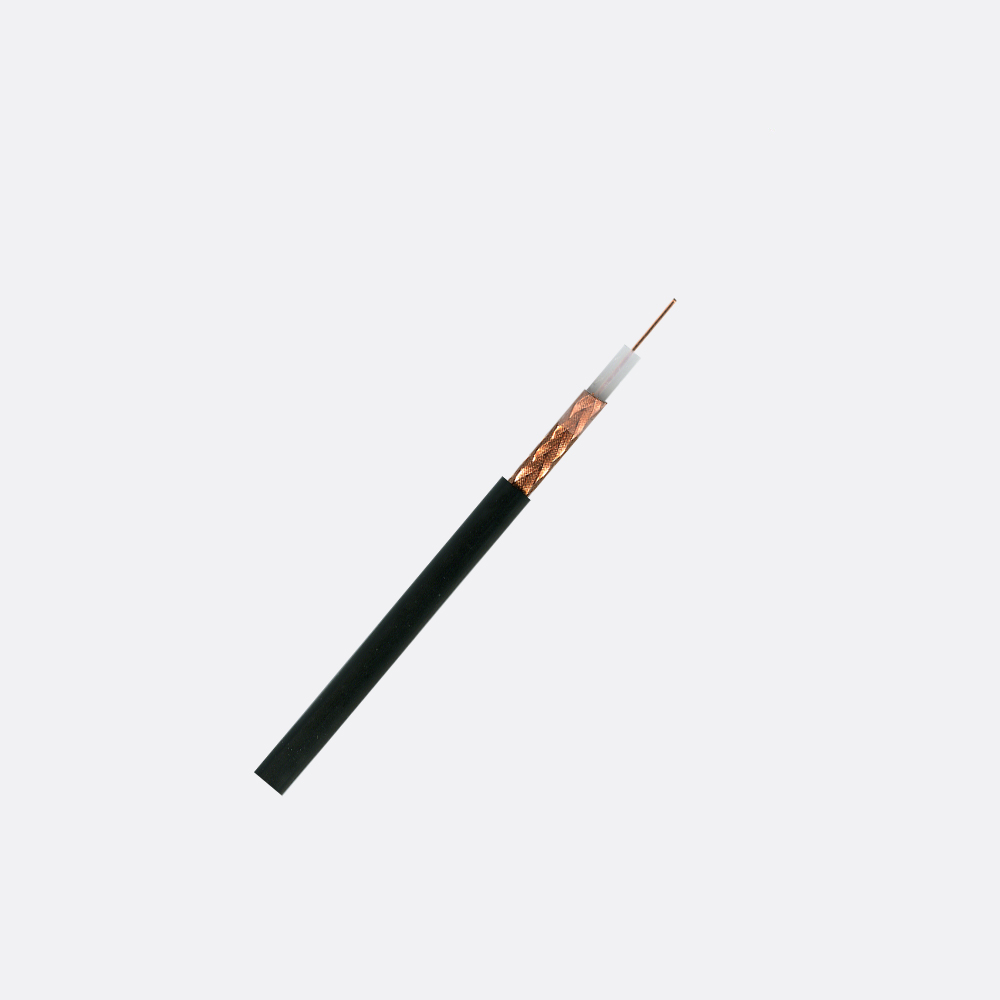

75 OHM Coaxial Cable. RG59B/U type plain annealed copper conductor solid polyethene insulation, PVC sheath.


Conductor: 1 strand of 0.57 mm Plain Annealed Copper to AS1125 drawn from Class 110A copper to AS1574.

Insulation: Solid Low-Density Polyethylene.
Nominal Diameter: 3.60 mm.
Nom. Wall Thickness: 1.50 mm.

Lay Up: 2 Cores laid up.
1. White / Blue
2. Blue

Screen: Plain Annealed Copper Braid to a min. coverage of 94%.

Sheath: Coloured P.V.C
Nominal Diameter: 6.15 mm.
Nom. Wall Thickness: 0.80 mm.

Electrical Characteristics:
Typical Impedance: 75 ohms
Typical Capacitance at 1khz: 67 pF/m
Velocity of propagation ratio: 66 %
Attenuation at 200MHz typical : 16.1dB
