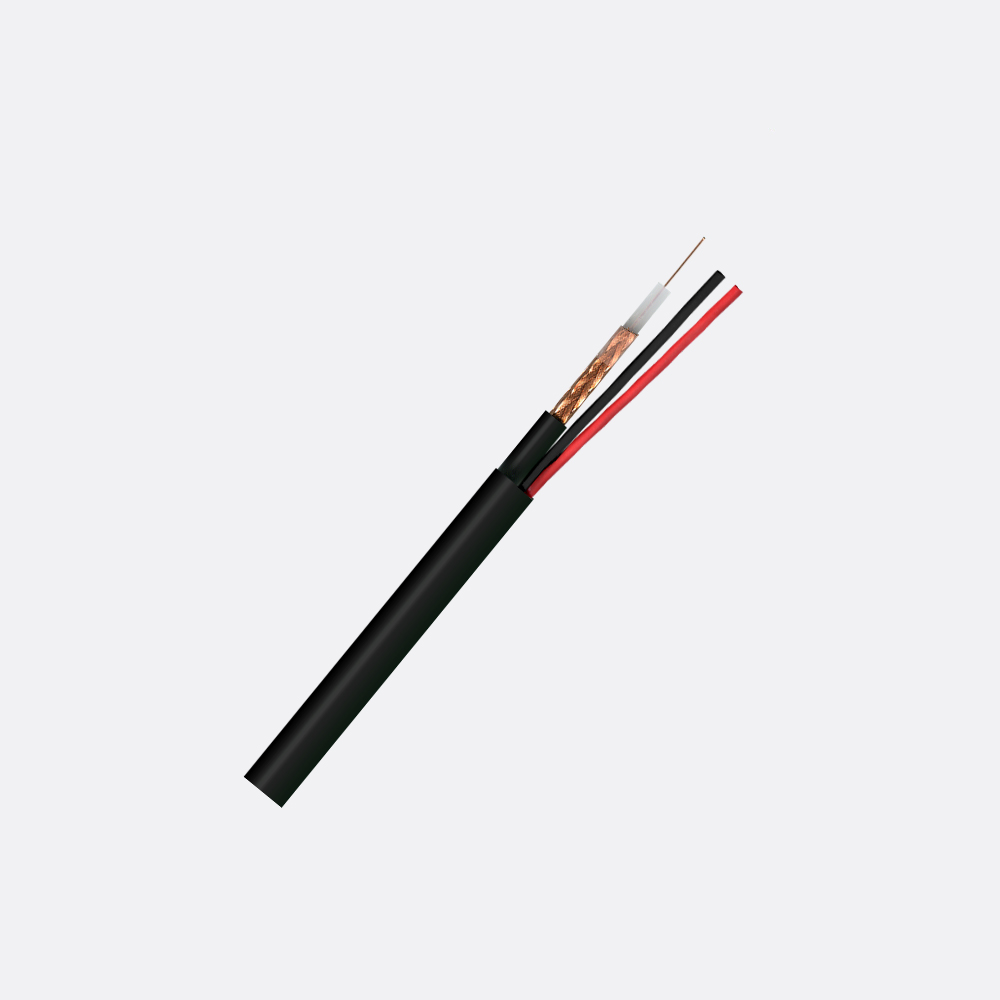

RG59 + 2 x 0.75mm² Round – CCE59224

Low-density Polyethylene Insulation

CCTV, Signal cable.

Specification Sheet:
  Click to download specifications

Composite Cable consisting of 1x RG59 75 ohm coaxial cable plus 2 x 0.75mmsq cores 75c PVC insulated.
Overheated in 75c PVC.


Conductor: 0.75mmsq CORES 24 strands of 0.2 mm nom Plain Annealed copper to AS1125 drawn from Class 110A copper to AS1574.
Max. DC resistance at 20c :26.0 ohms/klm.

Coaxial: See attached.

Insulation: 0.75mmsq CORES Coloured PVC type V75 to AS3808
Nominal diameter: 2.40 mm.
Nominal Wall Thickness: 0.6.
Polyester tape between core assembly and sheath.

Screen: Plain Annealed Copper Braid to a min. coverage of 94%.

Sheath: Coloured 4V75 PVC to AS3808 over 1x Black Coax + 1. Red and 2. Black 24/.2 cores.
Nominal Diameter : 10.2 mm.
Nom. Wall Thickness : 0.76 mm.
Solid fill – Slightly oval finish.

Identification: Printed on sheath – TYCAB RG59 Composite CCTV cable 6CCE59224B – Metre Marked.
