CAT5E + 2 x 0.75mm² – CCE52024

Low-density Polyethylene Insulation

CCTV, Signal cable.

Specification Sheet:
  Click to download specifications

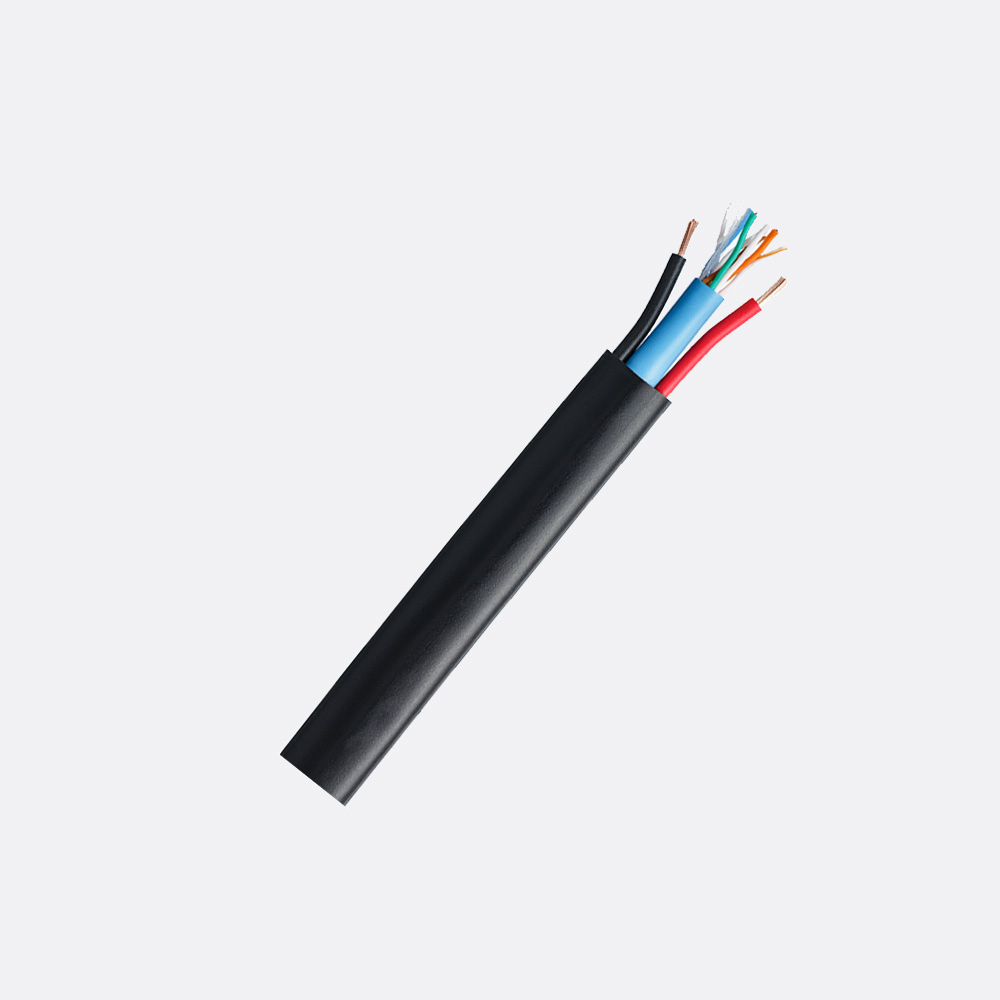

Composite cable consisting of 1 x Cat5 Enhanced unshielded cable 4 Pair 0.51nom P.A.C.W. Polyolefin insulated plus 2 x 0.75mmsq cores 75c PVC insulated.
Over sheathed in 75c PVC.


Conductor: Cat5 E – See attached specification.
0.75mm Cores – 24 strands of 0.2mm nom Plain Annealed Copper to AS1125 drawn from Class 110A Copper to AS1574.
Max. DC resistance at 20c: 26.0 ohms/km.

Insulation: Cat 5E – See attached specification.
0.75mm Cores – Coloured V75 PVC to AS3808.
Nominal Diameter: 2.4 mm.
Nom. Wall Thickness: 0.6 mm.

Sheath: Coloured P.V.C. Type 4V75 to AS3808.
Over 1 x Blue Cat 5 E + 1. Red and 2. Black 24/2 cores.
Nominal Diameter: TBA.
Nom. Wall Thickness: 0.76mm.

Identification: Printed on Sheath x 1000mm spacing’s metre marked – TYCAB NZ COMPOSITE CAT 5E UTP + 2 X 0.75mm2 CCTV MM (Metre Marked)
