Specification Sheet:
Click to download specifications

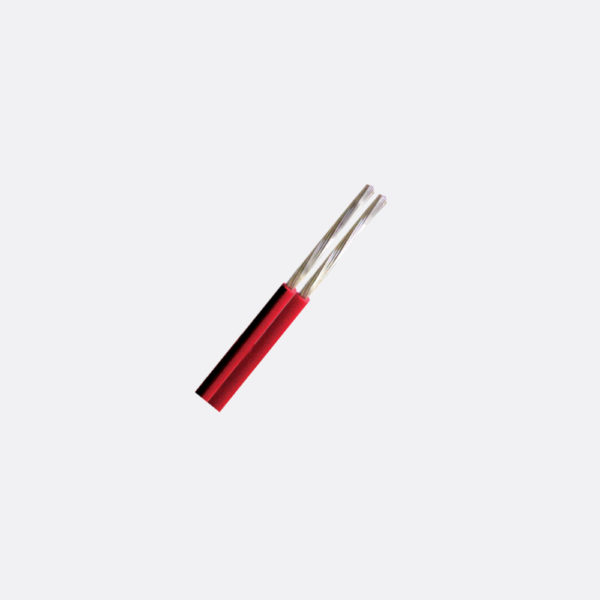

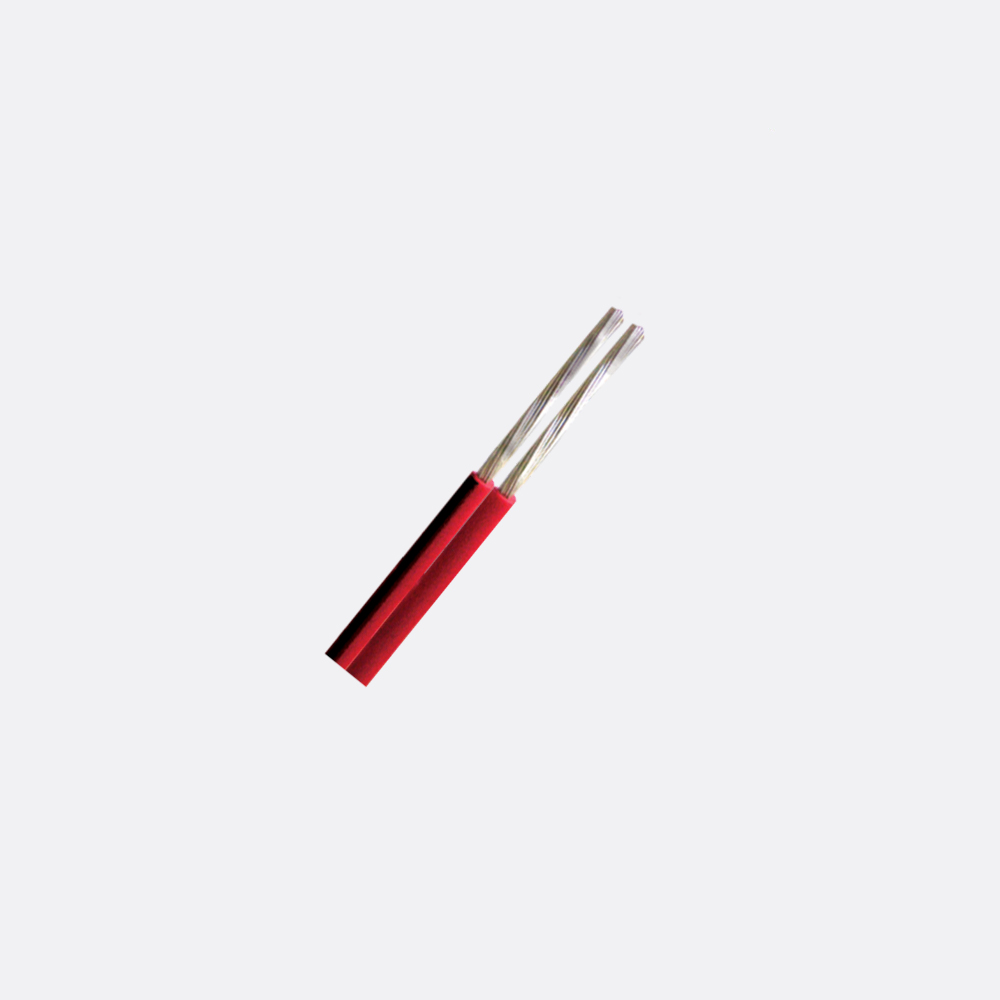

2 Core Parallel Webbed (Figure 8) 14/.32 (1.13 mmsq). Tinned Copper Wire.
V90 P.V.C insulated. 60 Volt Marine Pleasure Craft cable.
Extra Low Voltage. Not for mains outlet connection.
Construction
Conductor:4 strands of 0.32 mm Tinned Annealed Copper to AS1125 drawn from Class 110 copper to AS1574.
Max. D.C. resistance at 20C : 16.5 ohms / km
Insulation: Coloured type V90 P.V.C. to AS/NZS 3808.
Parallel Webbed (Figure 8) construction.
Nominal Diameter: 2.6 x 5.9 mm.
Nominal Wall Thickness: 0.6 mm.
Amp Rating @ 30°C: 16
Identification: Nil
| Derating Factors for Ambient Temperatures °C | |||||
| Temperature | 30 | 40 | 50 | 60 | 70 |
| Factor | 1 | 0.9 | 0.76 | 0.6 | 0.45 |
3.2 INSULATION: Coloured type V90 P.V.C. to AS/NZS 3808.
Parallel Webbed (Figure 8) construction.
Nominal Diameter: 2.6 x 5.9 mm
Nominal Wall Thickness: 0.6 mm
3.3 IDENTIFICATION: Nil
