2 x 1.13mm² – AFLS214032 (LSZH)


V90 PVC insulated
Applications
Trailer Wiring, 12/24VDC Low Voltage Applications e.g. Access Control

Specification Sheet:
  Click to download specifications

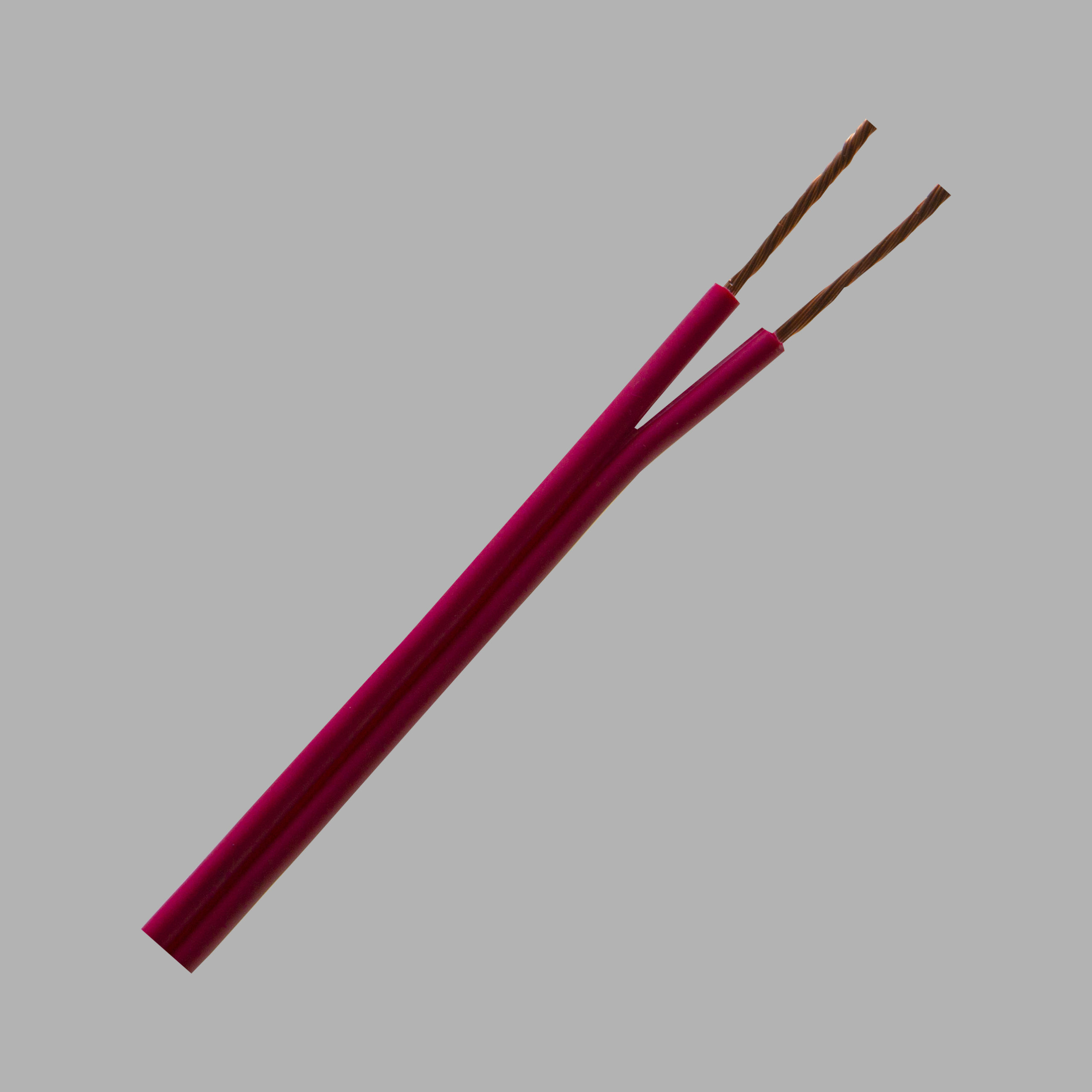

2 Core Parallel Webbed ( Figure 8) 14/.32 ( Ll3 mmsq ). P.A.C.W.
Flame Retardant Low Smoke Zero Halogen I-IFS-90-TP insulated,
60-volt automotive cable. Not for mains GPO connection.
Oxygen-Free Copper. RoHS Compliant.

Construction

Conductor: 14 strands of 0.32 mm Plain Annealed Copper to AS1l25 drawn from Class 102 copper to AS1574.
Max. D.C, resistance at 20C : 16.5 ohms/km.

Insulation: Coloured FIFS-9O-TP to AS3808.
Parallel Webbed (Figure 8) construction.
Nominal Diameter: 2.6 x 5.9 mm.
Nom, Wall Thickness: 0.6 mm.

Amp Rating @ 30°C: 16

Derating Factors for Ambient Temperatures °C
Temperature 30 40 50 60 70
Factor 1 0.9 0.76 0.6 0.45
