Specification Sheet:
Click to download specifications

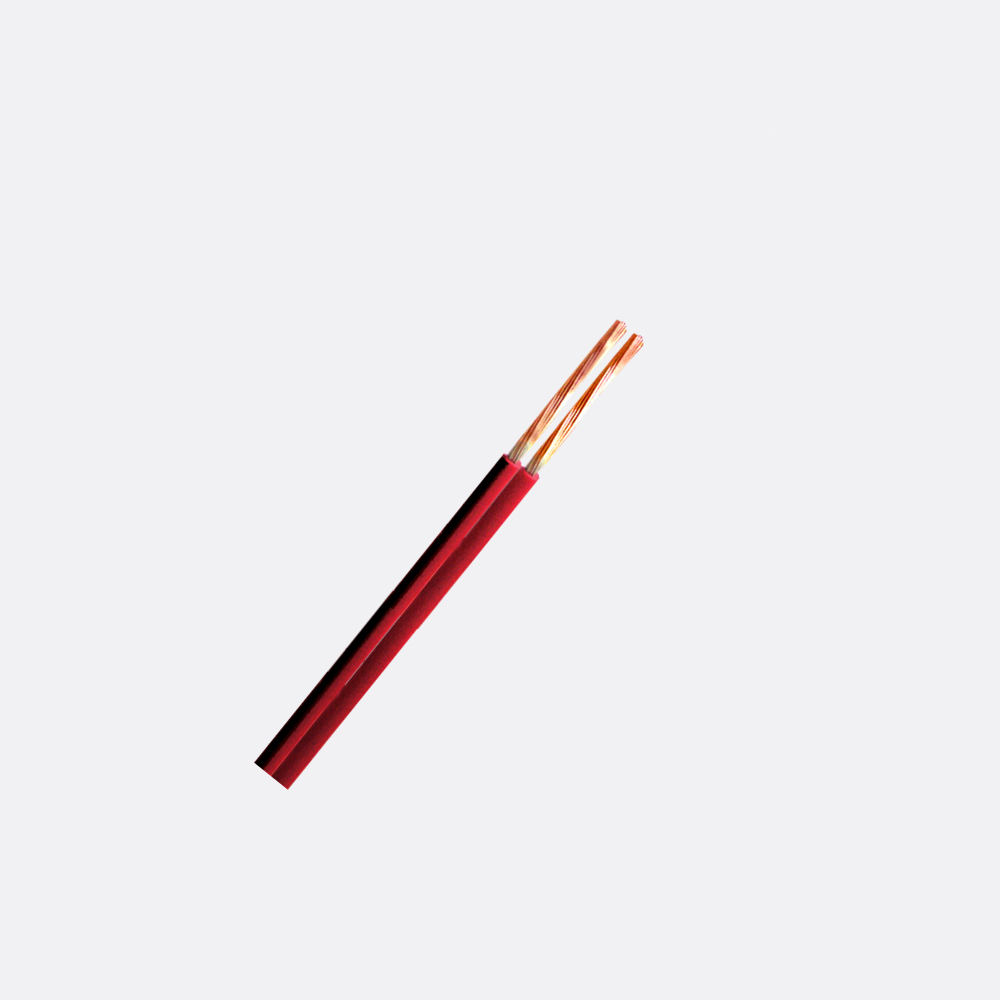

2 Core Parallel Webbed (Figure 8) 14/0.32 ( 1.13 mm sq ). P.A.C.W.
V90 P.V.C insulated.
Extra Low Voltage Automotive cable. Not for mains outlet connection.
50V A.C. 120 D.C. to AS/NZS 3000.
Oxygen-Free copper. RoHS Compliant PVC.
Construction
Conductor: 14 strands of 0.32mm Plain Annealed Copper to AS/NZS 1125 drawn from Class 102 copper to AS/NZS 1574.
Max. D.C. resistance at 20C: 16.5 ohms / km.
Insulation: Coloured V90 P.V.C. to AS/NZS 3808.
Parallel Webbed (Figure 8) construction.
Nominal Diameter: 2.6 x 5.9 mm.
Nominal Wall Thickness: 0.6 mm.
Amp Rating @ 30°C: 16
Identification: Polarity identification by coloured stripe.
| Derating Factors for Ambient Temperatures °C | |||||
| Temperature | 30 | 40 | 50 | 60 | 70 |
| Factor | 1 | 0.9 | 0.76 | 0.6 | 0.45 |
