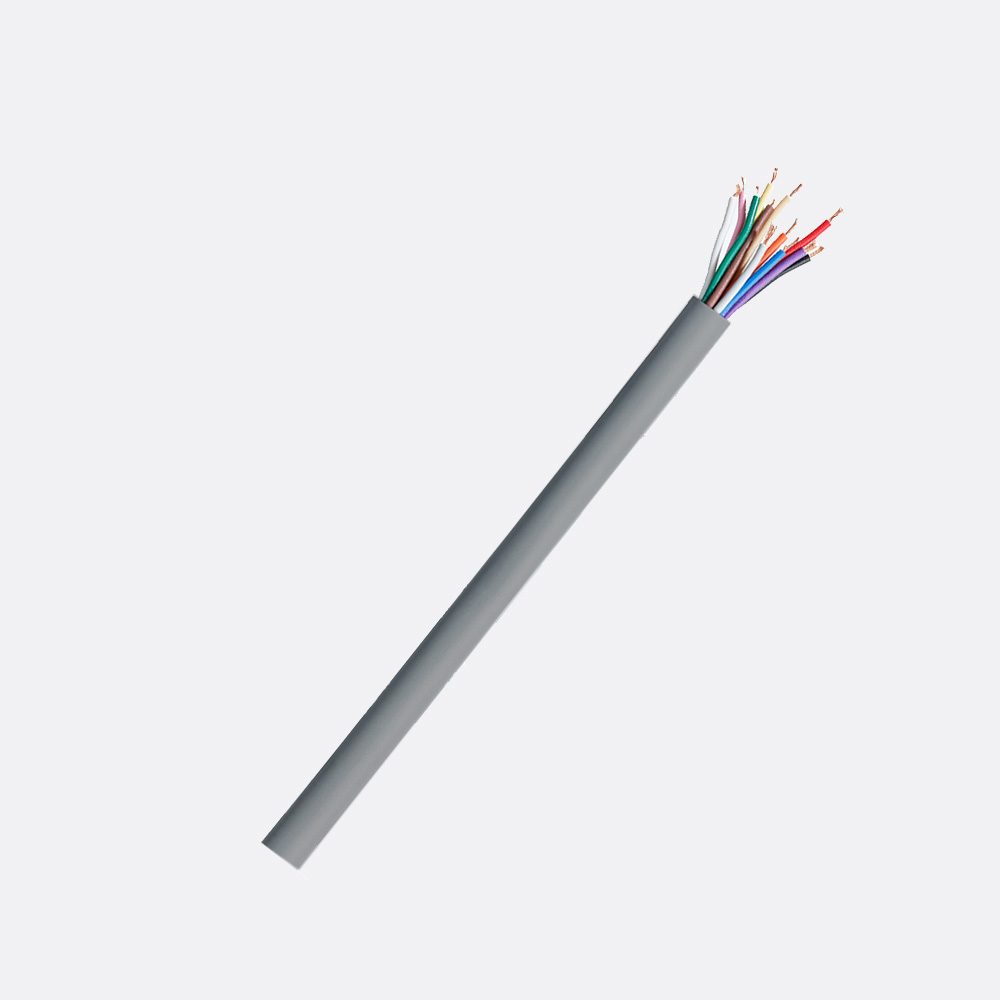

12 x 0.75mm² – FMC12/0.75


250/440V PVC insulated
Applications
Plug Leads, Appliance, Lighting.

Specification Sheet:
  Click to download specifications

12 Core 24/.2 (0.75 mm sq ,7.5amp) .P.C.W. V90 PVC insulated.
5V90 P.V.C. sheathed. Flexible supply cord.
Generally to AS/NZS 3191 250/440 Volt.

Construction

Conductor: 24 strands of 0.2 mm nom. Annealed Copper to AS1125 Class 5.
Max. D.C. resistance at 20C : 26.0 ohms / km.

Insulation: Coloured V90 PVC to AS/NZS 3191.
Nominal Diameter: 2.3 mm.
Nom. Wall Thickness: 0.6 mm.

Lay Up: 12 Cores laid up.
1. Black
2. Red
3. Lt Blue
4. Orange
5. Grey
6. Violet
7. Pink
8. White
9. Yellow
10. Green
11. Brown
12. Brown/White

Sheath: Coloured P.V.C. type 5V90 to AS/NZS 3191.
Nominal Diameter: 11.7 mm.
Nom. Wall Thickness: 0.9 mm.

Identification: Indented into Sheath at intervals not exceeding 500mm.
