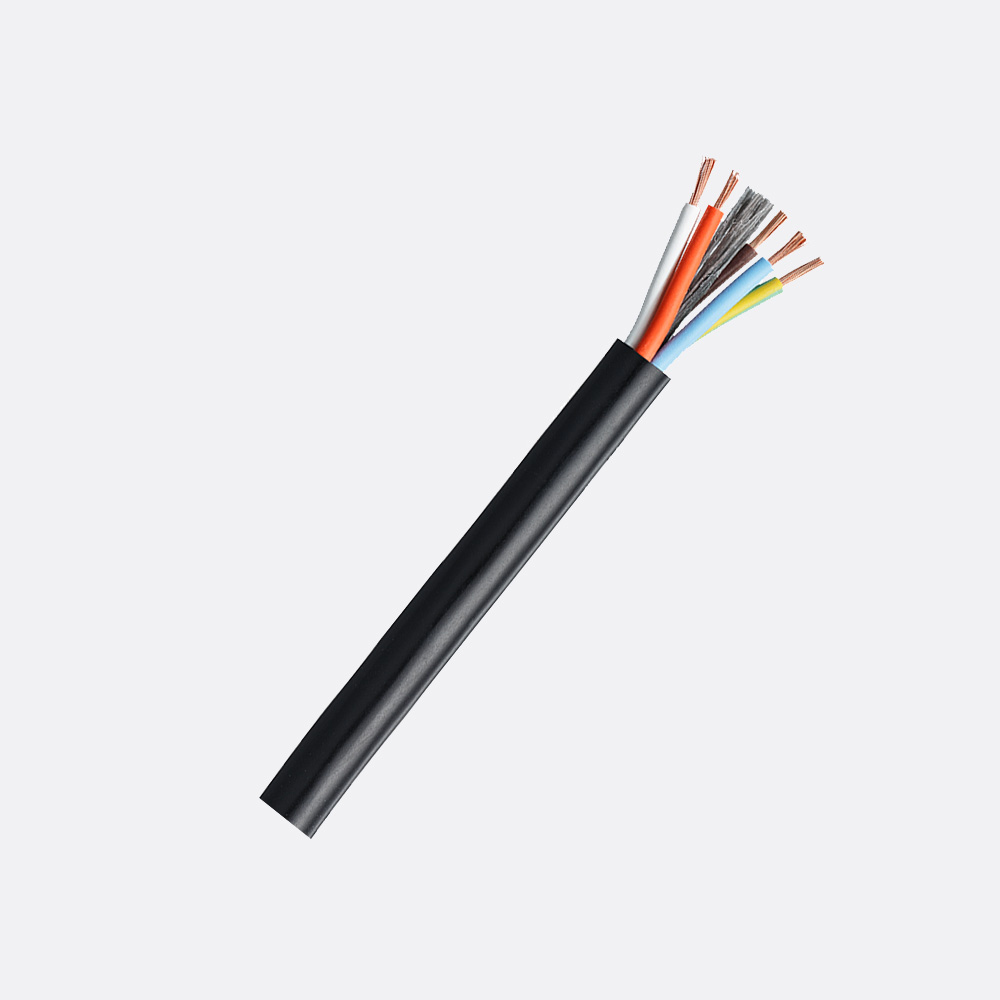

5 x 1.0mm² – FMC05/1.0

250/440V PVC insulated
Plug Leads, Appliance, Lighting.

Specification Sheet:
  Click to download specifications

5 Core 32/.2 (1.0mmsq, 10amp). P.C.W.
V90 PVC insulated & 5V90 P.V.C. sheathed Flexible cord.
250/440 Volt to AS/NZS 3191 Ordinary Duty.
Oxygen-Free Copper. RoHS compliant PVC.


Conductor: 32 strands of 0.2mm nom. Annealed Copper to AS/NZS 1125 drawn from Class 110A copper to AS/NZS 1574.
Max. D.C. resistance at 20C: 19.5 ohms / km.

Insulation: Coloured V90 PVC to AS/NZS 3808.
Nominal Diameter: 2.5 mm.
Nominal Wall Thickness: 0.6 mm.

Lay Up: 5 Cores laid up.
1. Light Blue
2. Brown
3. White
4. Black
5. Green / Yellow

Sheath: Coloured P.V.C. type 5V90 to AS/NZS 3808.
Nominal Diameter: 8.5 mm.
Nominal Wall Thickness: 0.9 mm.

Identification: Indented into Sheath at intervals not exceeding 500mm. “TYCAB V90 250/440V ORD DUTY” PRINTED (metre marked) 001M >I<
