Specification Sheet:
Click to download specifications

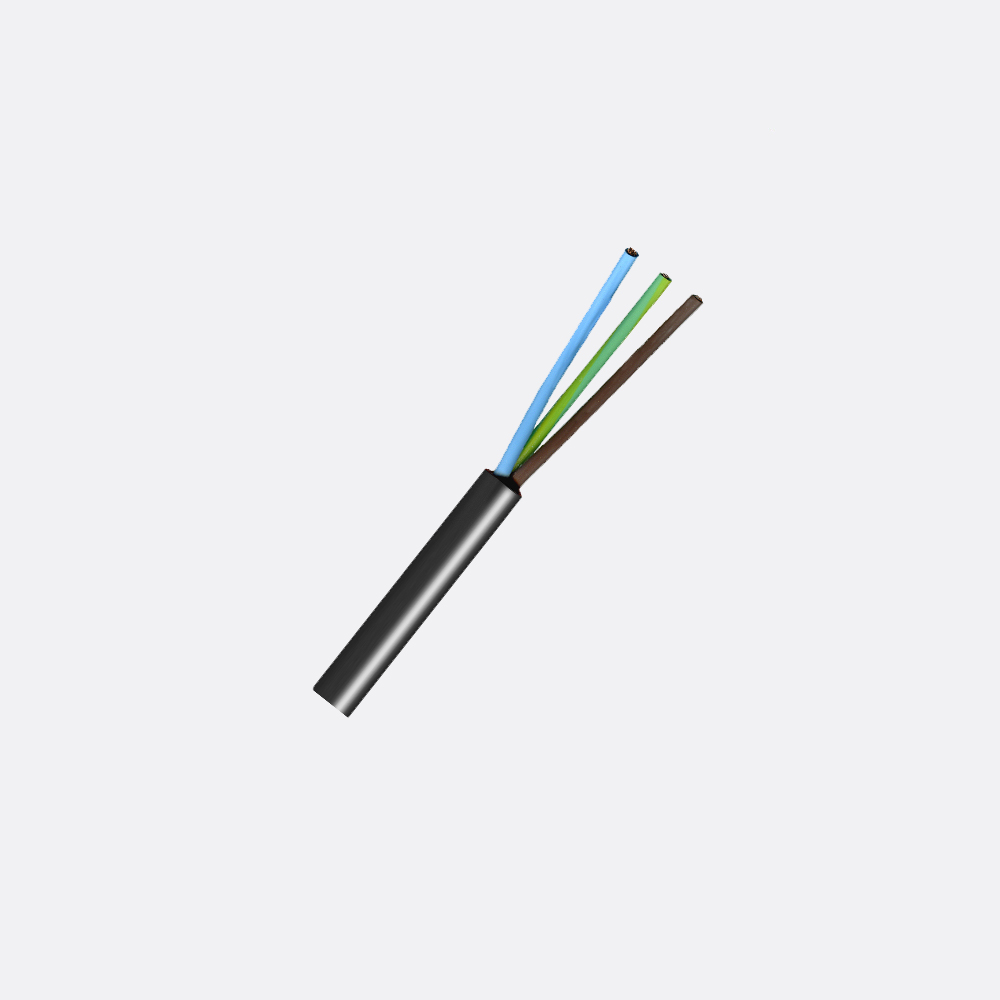

3 Core 16/.2 (0.5mmsq, 4.0amp). P.C.W.
V90 PVC insulated & 5V90 P.V.C. sheathed Flexible cable.
Dimensions to AS/NZS 3191 Ordinary Duty 250/440volt.
Oxygen-Free Copper. RoHS compliant PVC.
Construction
Conductor: 16 strands of 0.2mm nom. Annealed Copper to AS/NZS 1125 drawn from Class 102 copper to AS/NZS 1574.
Max. D.C. resistance at 20C: 39.0 ohms / km.
Insulation: Coloured V90 PVC to AS/NZS 3808.
Nominal Diameter: 2.2 mm.
Nominal Wall Thickness: 0.6 mm.
Lay Up: 3 Cores laid up.
1. Brown
2. Blue
3. Light Green / Yellow
Sheath: Coloured P.V.C. type 5V90 to AS/NZS 3808.
Nominal Diameter: 6.3 mm.
Nominal Wall Thickness: 0.8 mm.
Identification: Indented into Sheath at intervals not exceeding 500mm. “TYCAB V90 250/440V ORD DUTY” And print metre marked.
