Specification Sheet:
Click to download specifications

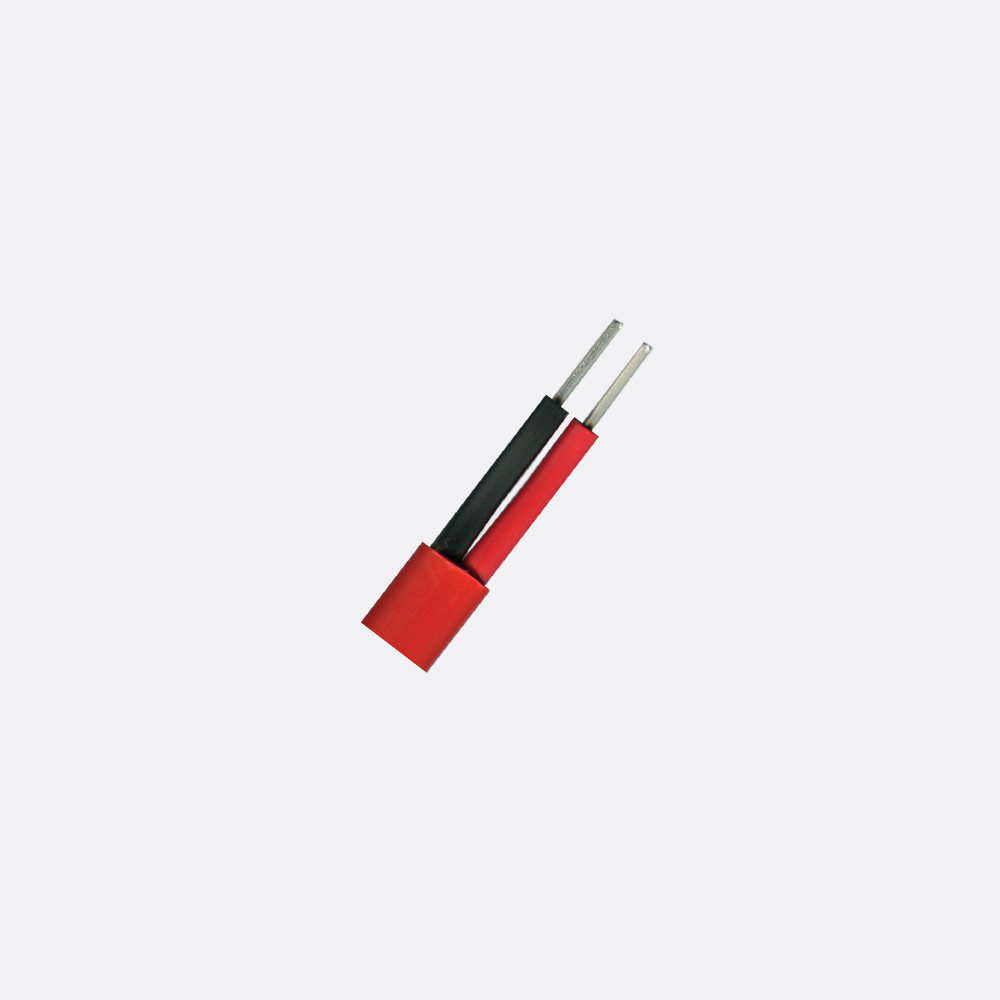

2 Core Flat IRRIGATION control cable 0.67 (2.5mmsq). T.A.C.W.
75C P.V.C insulated & UV Stabilised Polypropylene sheathed.
Extra Low Voltage. Not for Mains GPO Connection.
Maxi cable.
Construction
Conductor: 7 strands of 0.67mm Tinned Annealed Copper to AS1125 drawn from Class 110A copper to AS1574.
Max. D.C. resistance at 20C: 7.56 ohms / km.
Insulation: Coloured V75 P.V.C to AS3808.
Nominal Diameter: 5.0 mm.
Nominal Wall Thickness: 1.5 mm.
Core Colours:
1. Red
2. Black
Sheath: Coloured UV Stabilised Polypropylene.
Flat Configuration.
Nominal Diameter: 7.7 x 12.7 mm.
Nominal Wall Thickness: 1.15 mm.
