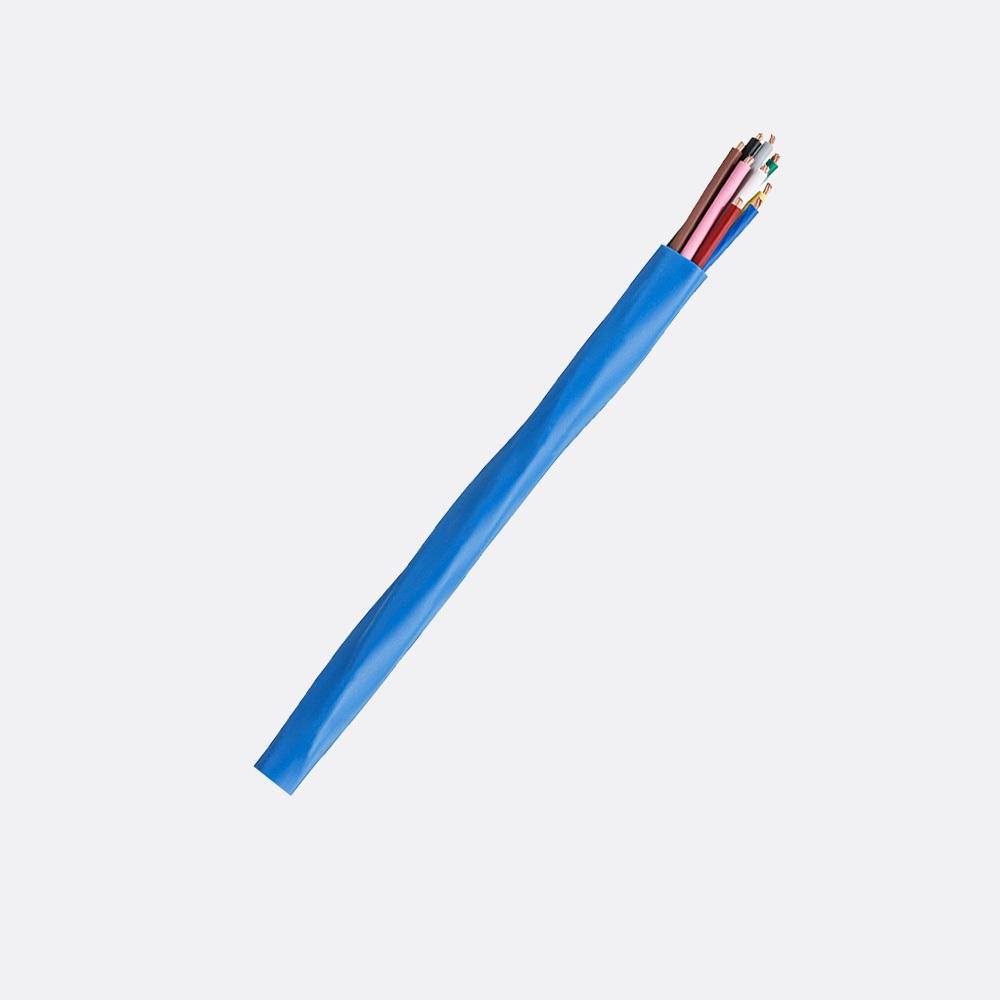

9 x 1mm² – WMW97043


UV Stabilised Polypropylene Insulated
Applications
Irrigation / Sprinkler Systems

Specification Sheet:
  Click to download specifications

9 Core 7/.43 (1.0sqmm) P.C.W. UV stabilised polypropylene insulated.
4V75 P.V.C sheathed. TYFLO irrigation cable.
Extra Low Voltage. Not for Mains Connection.

Construction

Conductor: 9 strands of 0.43 mm Annealed Copper to AS1125 drawn from Class 102 copper to AS1574.
Max. D.C resistance at 20C : 21.2 ohms/km.

Insulation: Coloured UV stabilised polypropylene.
Nominal Diameter: 2.15mm.
Nominal Wall Thickness: 0.4 mm.

Lay Up: 7 Cores Twisted.
1. Black
2. Red
3. White
4. Blue
5. Green
6. Brown
7. Yellow
8. Pink
9. Grey

Sheath: Coloured P.V.C type 4V75 to AS3808.
Nominal Diameter: 9.2mm.
Nominal Wall Thickness: 0.7mm.
