Specification Sheet:
Click to download specifications

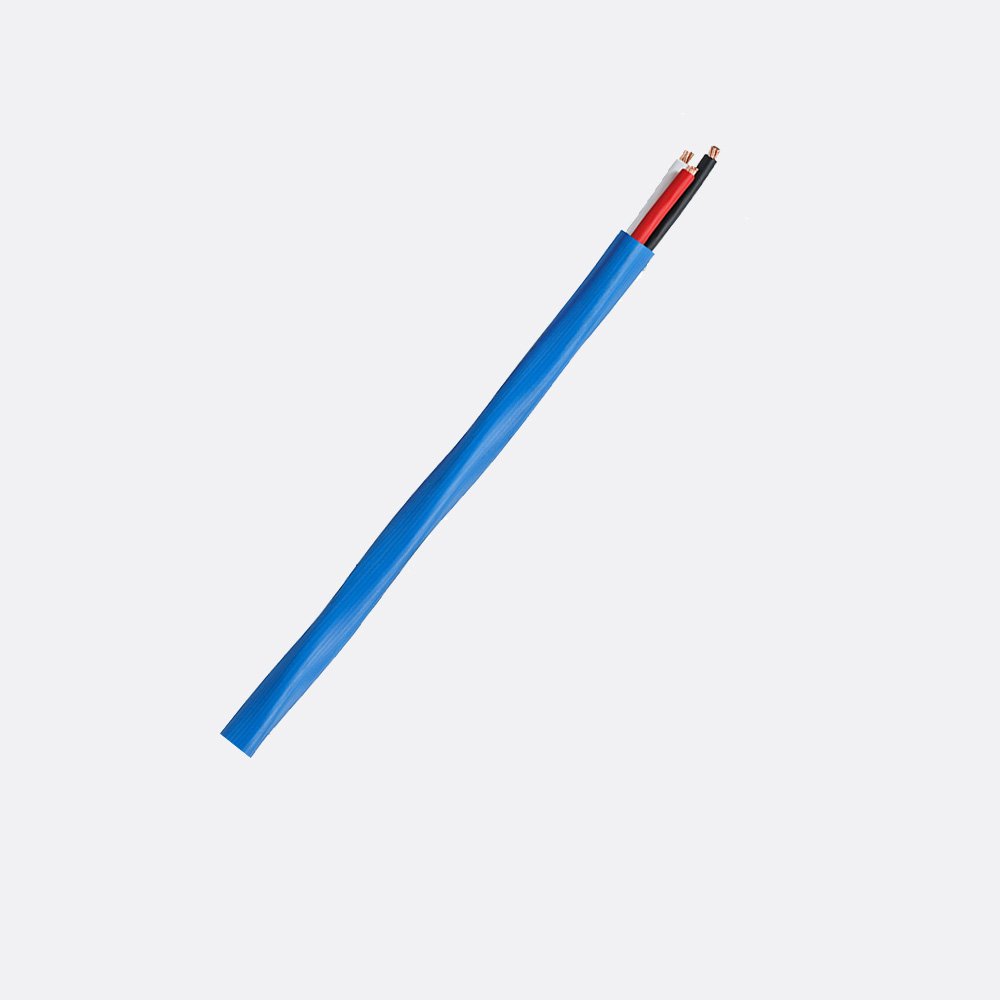

3 Core 7/.43 (1.0sqmm). P.C.W. UV stabilised polypropylene insulated.
4V75 P.V.C. sheathed. TYFLO irrigation cable.
Extra Low Voltage. Not for Mains connection.
Construction
Conductor: 7 strands of 0.43mm Annealed Copper to AS1125 drawn from Class 102 copper to AS1574.
Max. D.C. resistance at 20C: 21.2 ohms / km.
Insulation: Coloured UV stabilised polypropylene.
Nominal Diameter: 2.15 mm.
Nominal Wall Thickness: 0.4 mm.
Lay Up: 3 cores twisted
1. Black
2. Red
3. White
Sheath: Coloured P.V.C. type 4V75 to AS3808.
Nominal Diameter: 5.8 mm.
Nominal Wall Thickness: 0.6 mm.
