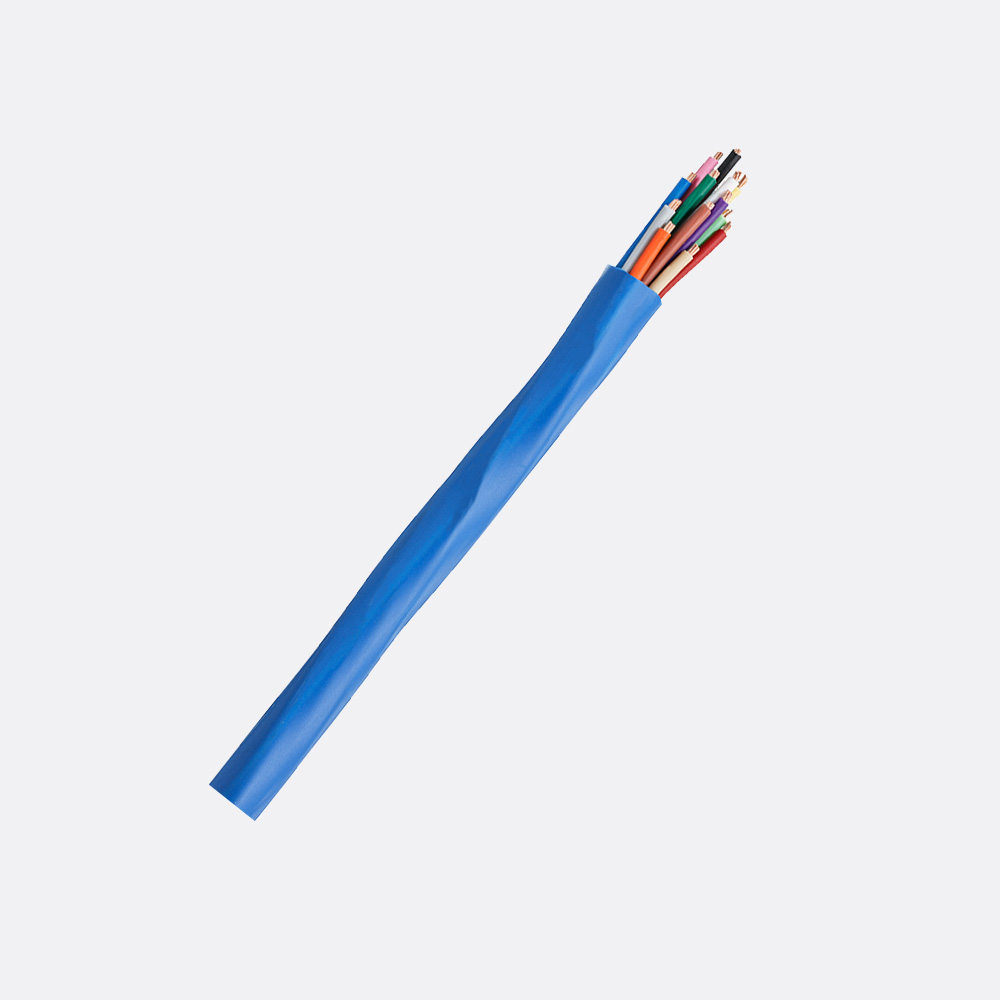

13 x 1.5mm² – WMW13705


UV Stabilised Polypropylene Insulated
Applications
Irrigation / Sprinkler Systems

Specification Sheet:
  Click to download specifications

13 Core 7/.5 (1.5sqmm) .P.C.W. UV stabilised polypropylene insulated.
4V75 P.V.C. sheathed. TYFLO irrigation cable.
Extra Low Voltage. Not for Mains connection.

Construction

Conductor: 7 strands of 0.5mm Annealed Copper to AS1125 drawn from Class 102 copper to AS1574.
Max. D.C. resistance at 20C : 13.6 ohms / km.

Insulation: Coloured UV stabilised polypropylene.
Nominal Diameter : 2.35 mm.
Nom. Wall Thickness: 0.4 mm.

Lay Up: 13 Cores twisted.
1. Black
2 Red
3. White
4. Blue
5. Green
6. Brown
7. Yellow
8. Pink
9. Grey
10. Violet
11. Beige
12. Light Green
13. Orange

Sheath: Coloured P.V.C. type 4V75 to AS3808.
Nominal Diameter: 11.6 mm.
Nom. Wall Thickness: 0.7 mm.
