4 x 4mm² – LPC44

V75 PVC insulated


Specified Cinema Cable

Specification Sheet:
  Click to download specifications

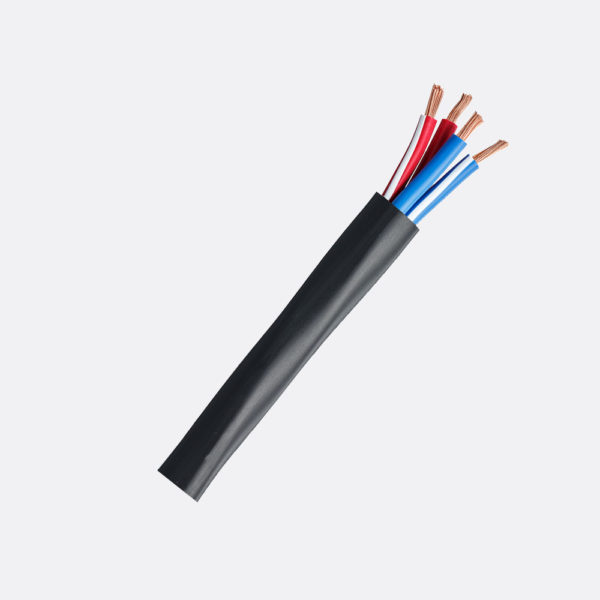

4 Core Audio cable 56/.3 (4.0 mmsq ) P.A.C.W .PVC insulated
PVC sheathed.
Low Voltage cable. Not for mains outlet connection.


Conductor: 56 strands of 0.3mm Plain Annealed Copper to AS1125 drawn from Class 110A copper to AS1574.
Max. D.C. resistance at 20C : 5.0 ohms / km.

Insulation: Coloured PVC type V75 to AS3808.
Core 1: Blue Core 2: Blue/White.
Core 3: Red Core 4: Red/White.
Nominal Diameter: 4.35 mm.
Nom. Wall Thickness: 0.8 mm.

Sheath: Coloured PVC type 4V75 to AS3808.
Nominal diameter : 13.6 mm.
Nominal Wall Thickness :1.46 mm.

Identification: Printed on sheath – TYCAB CINEMASOUND LPC44.
