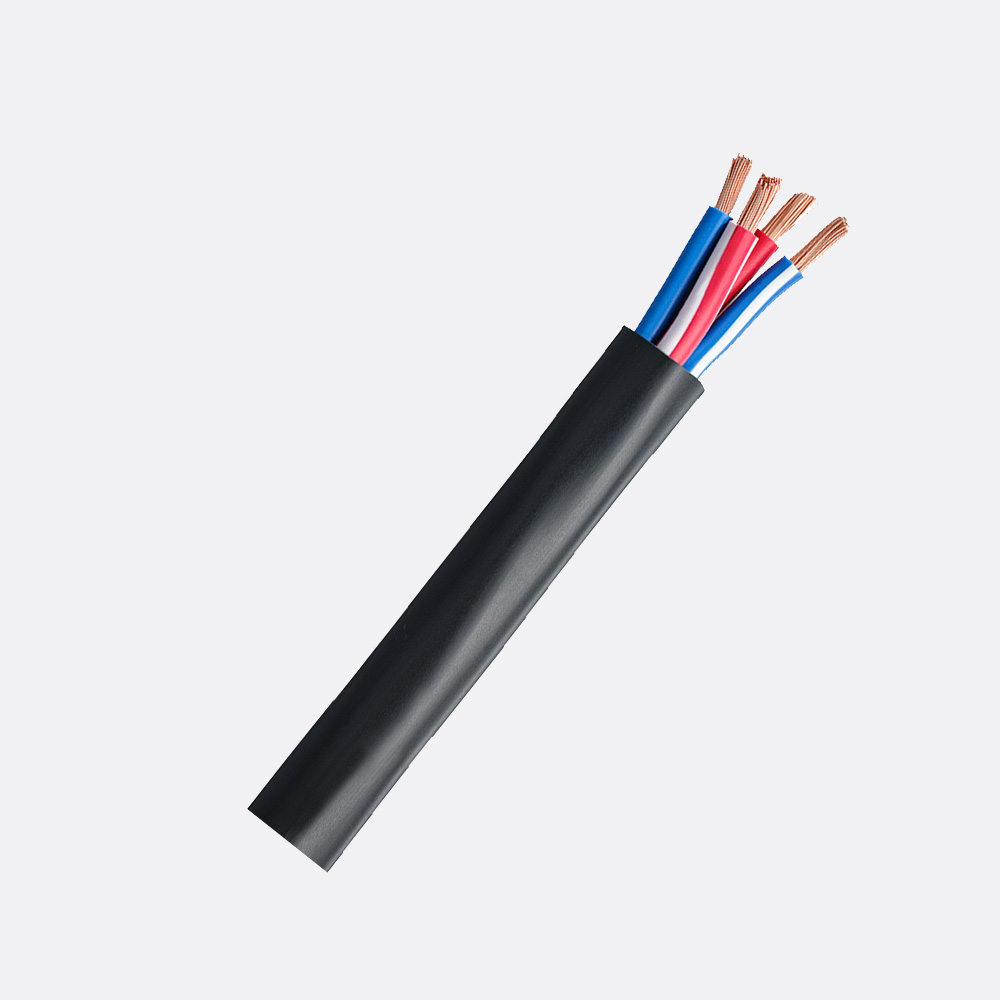

4 Core Audio cable. 2 Cores 84/0.3 (6.0mmsq) plus 2 Cores 56/0.3 (4.0mmsq).
P.A.C.W. P.V.C insulated and PVC sheathed.
Low Voltage cable. Not for mains outlet connection.
Construction
Conductor:
84/0.3 cores
84/0.3 strands of 0.3mm Plain Annealed Copper to AS/NZS1125 drawn from Class 110A copper to AS/NZS1574.
Max. D.C. resistance at 20C: 3.3 ohms / km.
56/0.3 cores
56/0.3 strands of 0.3mm Plain Annealed Copper to AS/NZS1125 drawn from Class 110A copper to AS/NZS1574.
Max. D.C. resistance at 20C: 5.0 ohms / km.
Insulation:
84/0.3 cores
Coloured type V75 P.V.C. to AS/NZS3808.
Core 1: Red Core 2: Red/White.
Nominal Diameter: 4.95 mm.
Nominal Wall Thickness: 0.8 mm.
56/0.3 cores
Coloured type V75 P.V.C. to AS/NZS3808.
Core 3: Blue Core 4: Blue/White.
Nominal Diameter: 4.35 mm.
Nominal Wall Thickness: 0.8 mm.
Sheath: Coloured PVC type 4V75 to AS/NZS3808.
Nominal Diameter: 14.2 mm.
Nominal Wall Thickness: 1.46 mm.
Identification: Printed on sheath: TYCAB CINEMASOUND LPC26/24
