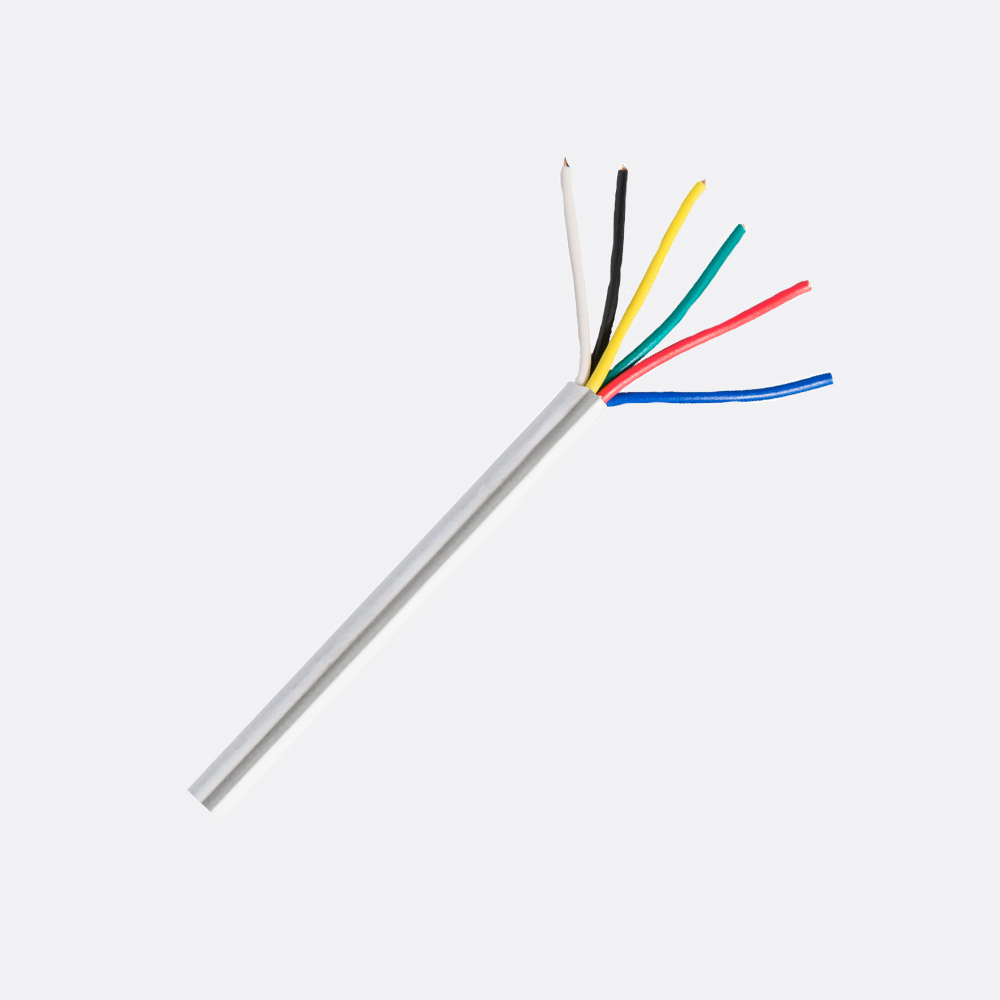

6 x 0.22mm² TCW – SET672

V75 PVC insulated
Security and Access Control Wiring (Residential and Commercial)

Specification Sheet:
  Click to download specifications

6 Core 7/.2 (0.2mmsq) TCW
V75 insulated & V75 PVC sheathed.
Security Cable. Extra Low Voltage.
Not for mains connection.
Oxygen-Free Copper. RoHS Compliant PVC.


Conductor: 7 strands of 0.2 mm nom. Tinned Annealed Copper to AS/NZS1125 drawn from Class 102 copper to AS/NZS1574.
Max. D.C. resistance at 20C: 89.5 ohms / km.

Insulation: Coloured P.V.C to AS/NZS3808 type V75.
Nominal Diameter: 1.2 mm.
Nominal Wall Thickness: 0.3 mm.

Lay Up: 6 cores twisted.
1. Black
2. White
3. Red
4. Blue
5. Green
6. Yellow

Sheath: Coloured P.V.C. to AS/NZS3808 type 4V75.
Nominal Diameter: 4.6 mm.
Nominal Wall Thickness: 0.5 mm.
Typical ropy finish.

Identification: “TYCAB NZ SECURITY SET672 CCL A95/CA/0155” – at maximum 1000mm spacing.
