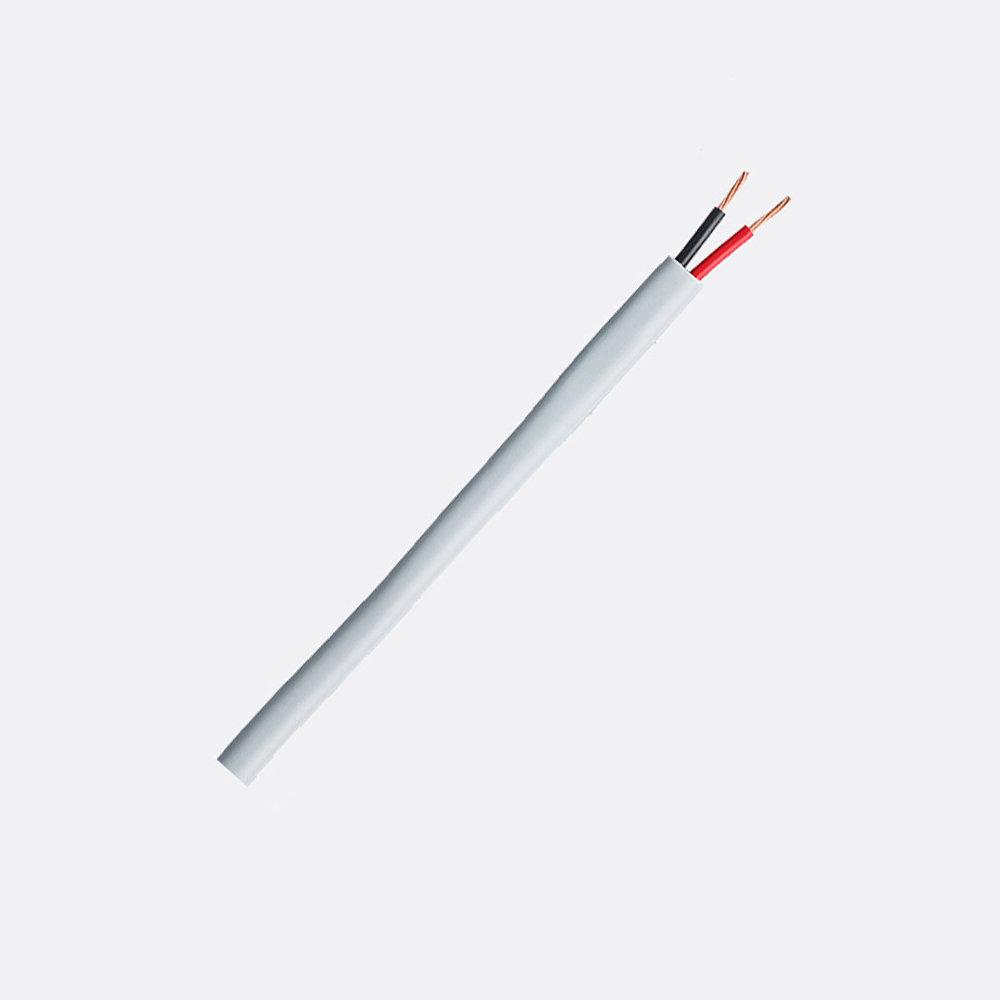

2 x 0.85mm² – SEC2704

V75 PVC insulated
Security and Access Control Wiring (Residential and Commercial)

Specification Sheet:
  Click to download specifications

2 Core 7/.4 (.0.85 mm sq) .P.A.C.W. V75 P.V.C insulated.
75c P.V.C. sheathed.
Extra Low Voltage. Not for mains outlet connection.
Oxygen-Free Copper. RoHS compliant PVC.


Conductor: 7 strands of 0.4 mm Plain Annealed Copper to AS1125 drawn from Class 102 copper to AS1574.
Max. D.C. resistance at 20C : 23.0 ohms / klm.

Insulation: Coloured 75 C P.V.C.to AS3808..
Nominal Diameter: 2.0 mm.
Nom. Wall Thickness: 0.4 mm.

Lay Up: 2 Cores Twisted.
1. Red
2. Black

Sheath: Coloured P.V.C. type V75 C to AS3808.
Nominal Diameter: 5.1 mm.
Nom. Wall Thickness: 0.5 mm.
Typical ropy finish.

Identification: Nil or by request.
