2 x 0.75mm² – LEC2242


V75 PVC insulated
Applications
Security and Access Control Wiring (Residential and Commercial)

Specification Sheet:
  Click to download specifications

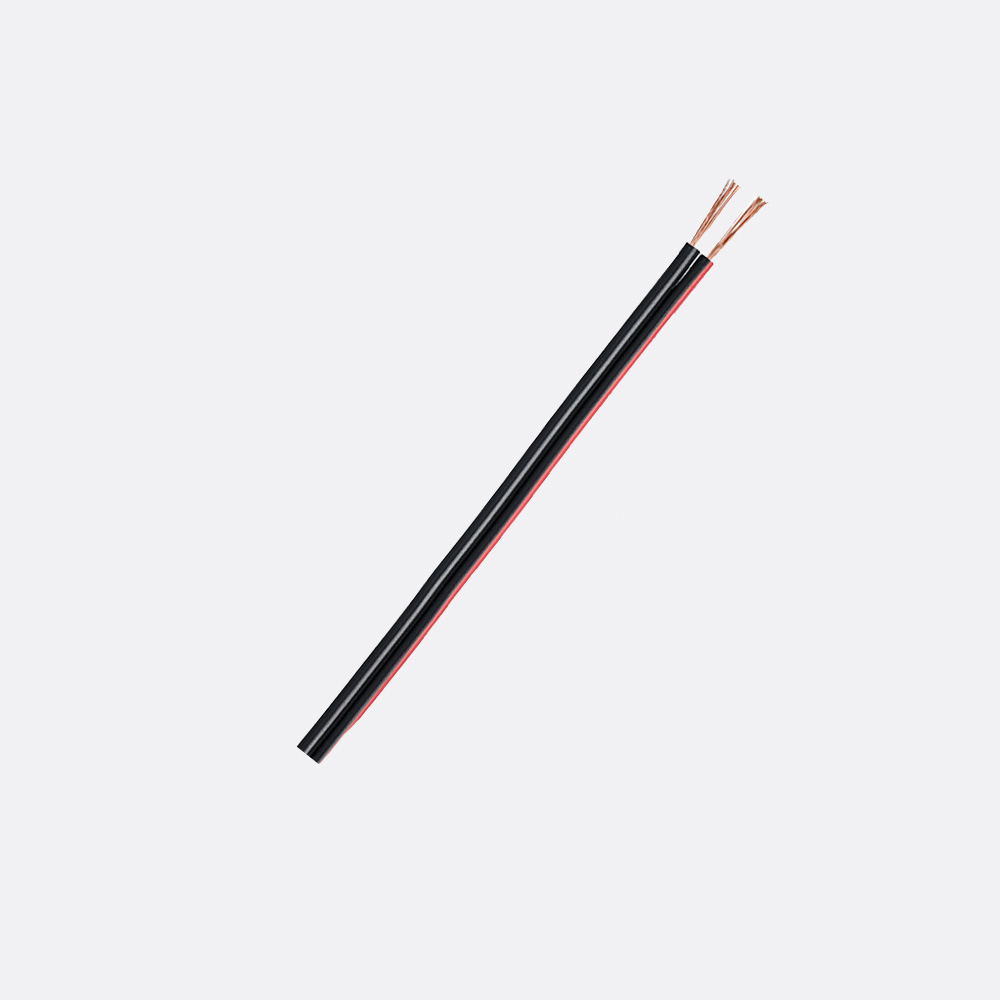

2 Core Parallel Webbed (Figure 8) 24/.2 (0.75mmsq). P.A.C.W.
V75 P.V.C insulated. Extra Low Voltage. Not for mains connection.
Oxygen-Free Copper. RoHS compliant PVC.

Construction

Conductor: 24 strands of 0.2mm nom. Plain Annealed Copper to AS/NZS 1125 drawn from Class 102 copper to AS/NZS 1574.
Max. D.C. resistance at 20C: 26.5 ohms / km.

Insulation: Coloured 75C P.V.C. to AS/NZS 3808.
Parallel Webbed (Figure 8) construction.
Nominal Diameter: 2.3 x 5.0 mm.
Nominal Wall Thickness: 0.6 mm.

Identification: Polarity ribs on one leg. Printed: RACOL SECURITY LEC2242 ACA N1155.
