Specification Sheet:
Click to download specifications

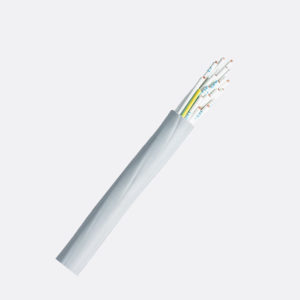

White cores numbered V90HT P.V.C. sheathed.
Control cable. 450/750 volt to AS5000.3
Oxygen-Free copper. RoHS compliant PVC.
Construction
Conductor:16 strands of 0.2 mm nom. Tinned Annealed Copper to AS1125 drawn from Class 102 copper to AS1574.
Max. D.C. resistance at 20C : 39 ohms / km.
Insulation: White V90HT PVC to AS3808.
Nominal Diameter: 2.1 mm.
Nominal Wall Thickness: 0.6 mm.

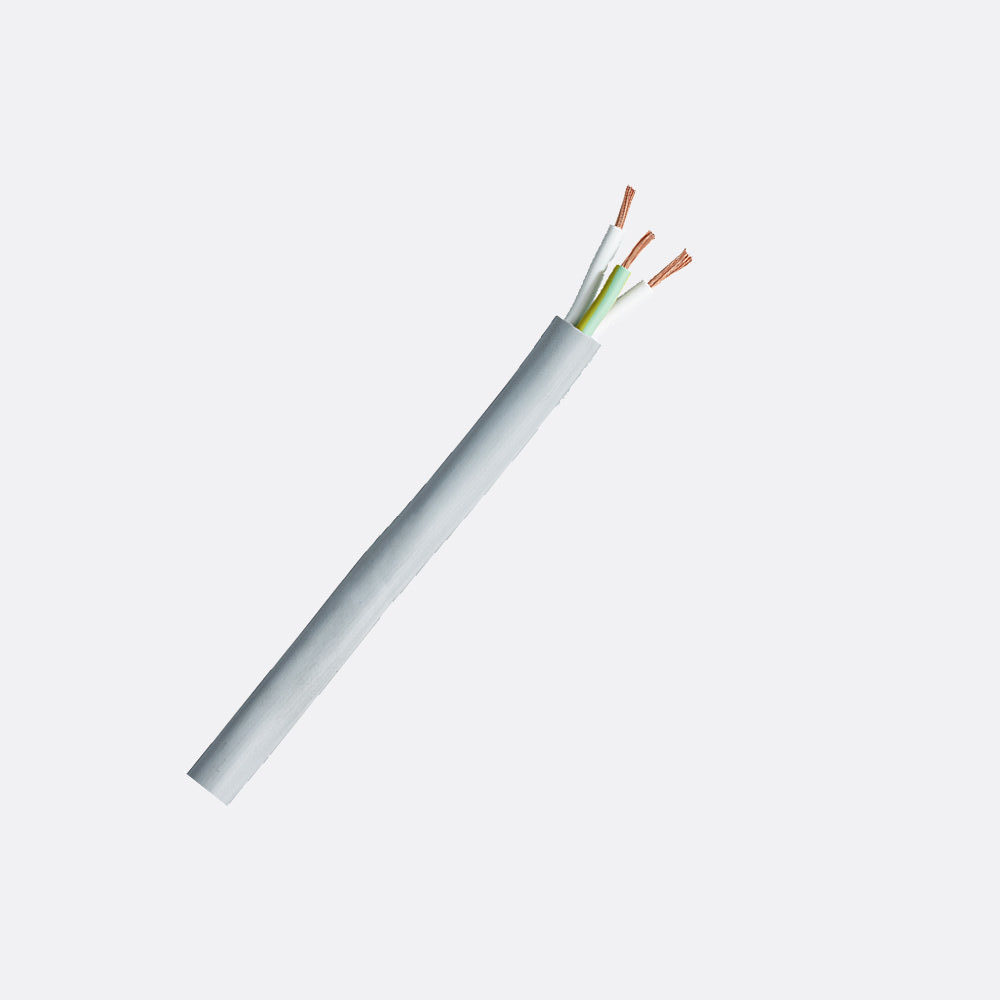

Lay Up: 4 Cores laid up
1. White No1
2. White No2
3. White No3
4. Green/Yellow
Sheath:Coloured P.V.C. type V90HT to AS3808.
Nominal Diameter: 7.5 mm.
Nominal Wall Thickness: 1.15 mm.
Identification: Printed on sheath at approx. 500mm intervals – TYCAB 4 X 0.5MMSQ 2019 V90HT ELECTRIC CABLE 450/750V.
