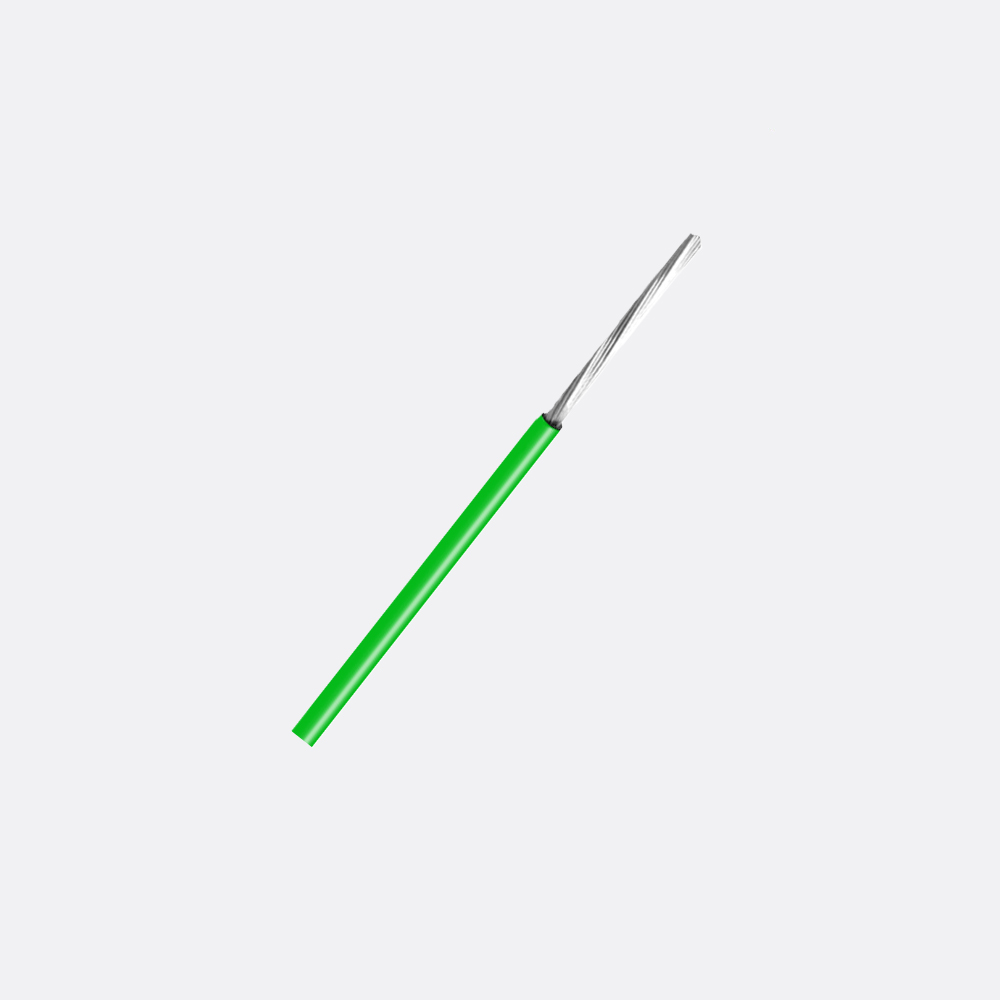

32/.2 (1.0mmsq, 10.0 amp) Tinned Annealed Copper.
V90HT PVC insulated. Unprotected single core.
250/440 VOLT to AS/NZS3191.
Conductor: 32 strands of 0.2 mm nom. Tinned Annealed Copper drawn from Class 110A copper to AS/NZS1574.
Max. D.C. resistance at 20C: 20.0 ohms / km.
Insulation: Coloured P.V.C. type V90HT to AS/NZS3808 – 1998.
Nominal Diameter: 2.60 mm.
Nominal Wall Thickness: 0.60 mm.
Identification: Indented into the insulation at max. 200mm: “TYCAB HT90”
