4 x 0.44mm² – DMC41402


V75 PVC insulated RS232
Applications
Data Communication, Interface Cable.

Specification Sheet:
  Click to download specifications

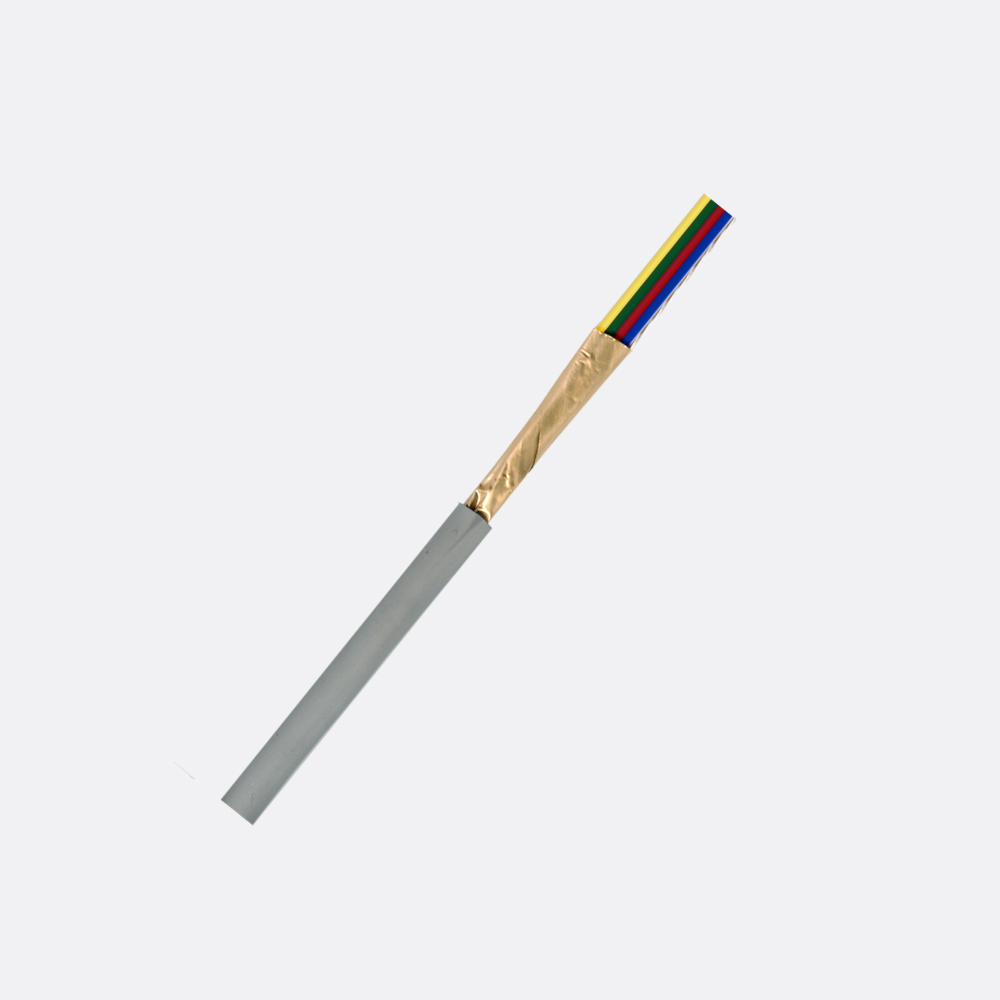

4 core 14/0.2 PCW (0.4mmsq) V75 Insulated Aluminium / Polyester tape screened including a 7/0.2 tinned drain wire. V75c PVC Sheathed.
Extra Low Voltage use, not for mains connection.
AUSTEL approval A93/CA/0122

Construction

Conductor: 14 strands of 0.2mm nom. Annealed Copper to AS1125 drawn from Class 110A copper to AS1574.
Max. D.C. resistance at 20C : 45.0 ohms / klm

Insulation: Coloured P.V.C to AS3808 type V75.
Nominal Diameter: 1.45 mm.
Nominal Wall Thickness: 0.26 mm.

Lay Up: 4 cores twisted.
1. Red
2. Blue
3. Green
4. Yellow

Screen: Aluminium / Polyester tape screen in contact along its length with a 7/.2 TACW drain wire.

Sheath: Coloured P.V.C. to AS3808 type 4V75
Nominal Diameter: 5.3 mm.
Nominal Wall Thickness: 0.76 mm.

Identification: on sheath at intervals not exceeding 2 metres – TYCAB AUSTRALIA MULTICORE DATA DMC41402 CCL A93/CA/0122
