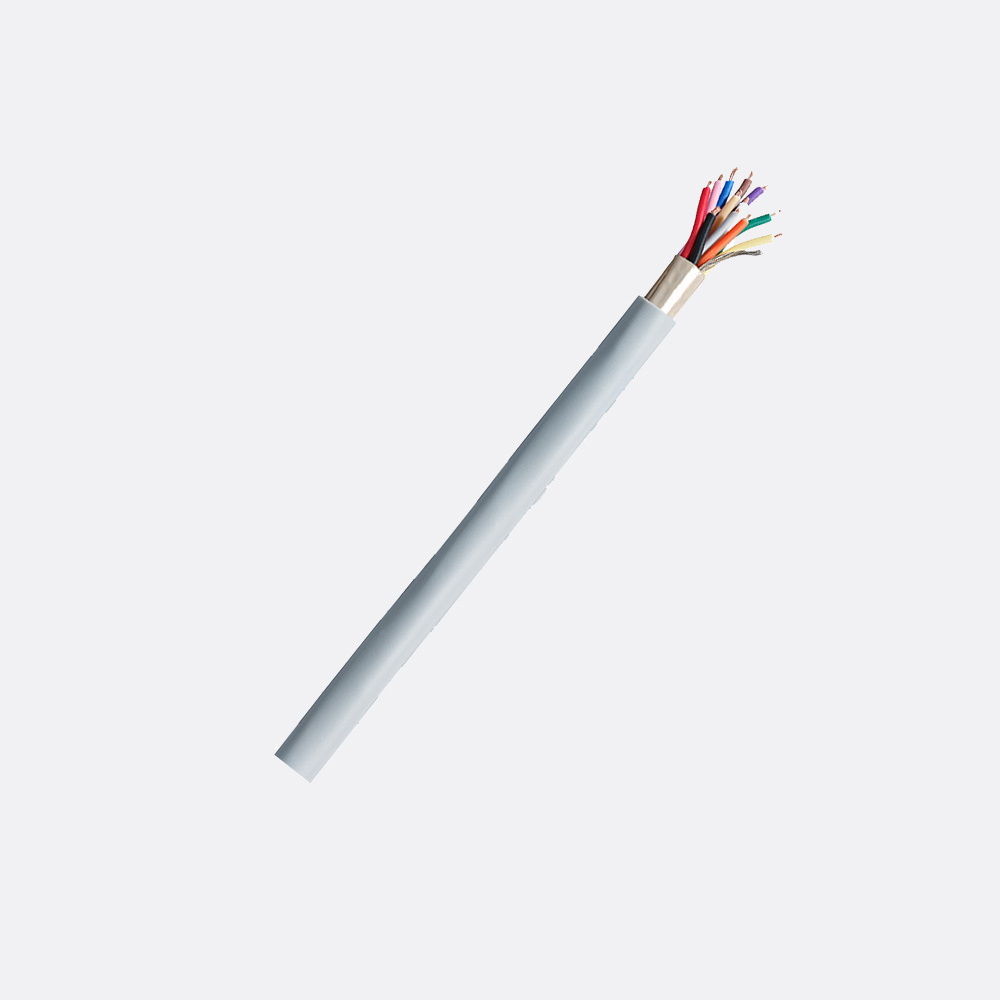

12 x 0.22mm² – DMC12702

V75 PVC insulated RS232
Data Communication, Interface Cable.

Specification Sheet:
  Click to download specifications

12 core 7/0.2 PCW
V75 Insulated Aluminium / Polyester tape screened including a 7/0.2 tinned drain wire. V75C PVC Sheathed.
AUSTEL approval A93/CA/0123
Extra Low Voltage use, not for mains connection.


Conductor: 7 strands of 0.2mm nom. Annealed Copper to AS/NZS 1125 drawn from Class 110A copper to AS/NZS 1574.
Max. D.C. resistance at 20C: 89.0 ohms / km.

Insulation: Coloured P.V.C to AS/NZS 3808 type V75.
Nominal Diameter: 1.15 mm.
Nominal Wall Thickness: 0.26 mm.

Lay Up: 12 cores twisted.
1. Red
2. Blue
3. Green
4. Yellow
5. White
6. Black
7. Brown
8. Violet
9. Orange
10. Pink
11. Tan
12. Grey

Screen: Aluminium / Polyester tape screen in contact along its length with a 7/.2 TACW drain wire.

Sheath:Coloured P.V.C. to AS/NZS 3808 type 4V75.
Nominal Diameter: 6.5 mm.
Nominal Wall Thickness: 0.76 mm.

Identification: Legibly and Durably printed at nom. 1M intervals: TYCAB AUSTRALIA MULTICORE DATA DMC12702 CCL A93/CA/0123.
