Specification Sheet:
Click to download specifications

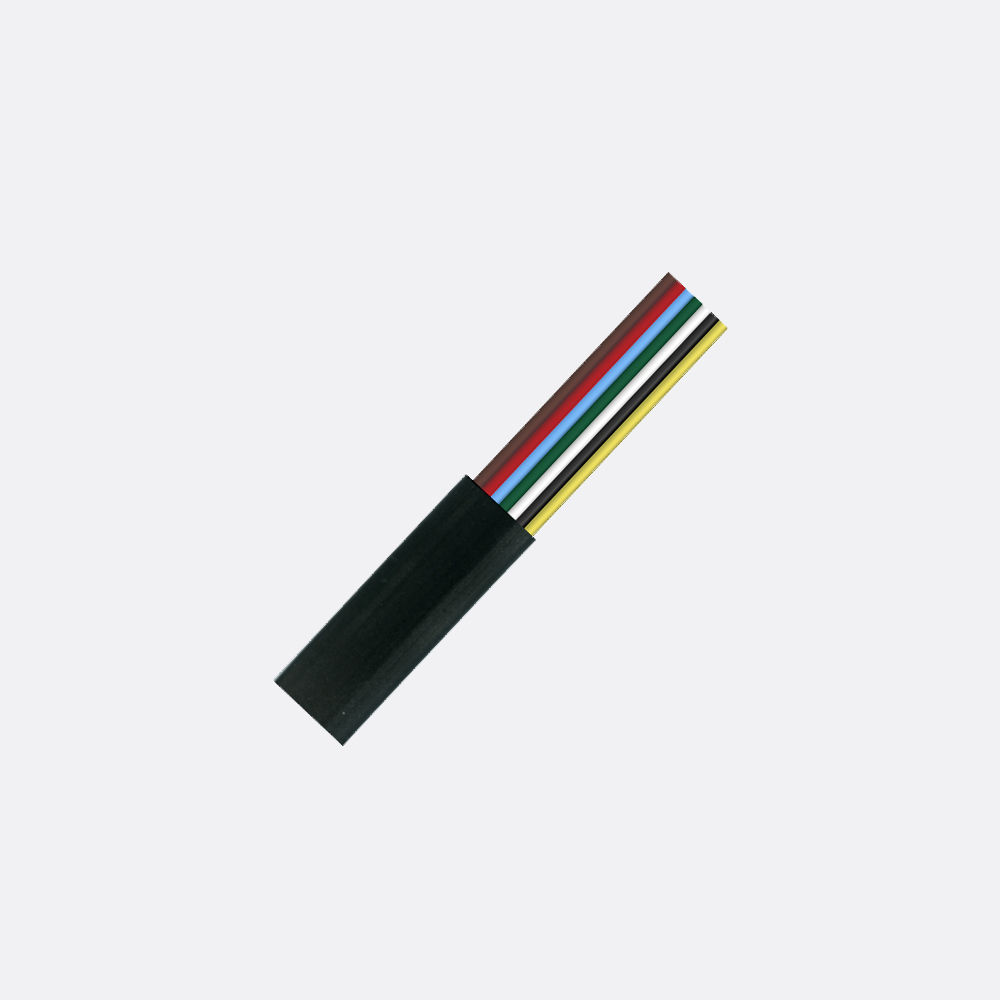

7 Core 19/.19 (0.54sqmm) .P.C.W. V90 PVC insulated.
5V90 P.V.C. sheathed FLAT trailer cable.
60 Volts DC or 25 Volts AC. Not for Mains GPO connection.
Construction
Conductor: 19 strands of 0.19mm Annealed Copper to AS1125 drawn from Class 110A copper to AS1574.
Max. D.C. resistance at 20C : 35.0 ohms / km.
Insulation: Coloured V90 PVC to AS3808.
Nominal Diameter : 2.2 mm.
Nom. Wall Thickness: 0.6 mm.
Lay Up: 7 Cores in sequence:
1. Brown
2. Red
3. Lt. Blue
4. Green
5. White
6. Black
7. Yellow
Sheath Flat: Coloured P.V.C. type 5V90 to AS3808.
Nominal Diameter : 4.5 X 17.6 mm.
Nom. Wall Thickness : 1.0 mm.
Amp Rating @ 30°C: 5
| Derating Factors for Ambient Temperatures °C | |||||
| Temperature | 30 | 40 | 50 | 60 | 70 |
| Factor | 1 | 0.9 | 0.76 | 0.6 | 0.45 |
