Specification Sheet:
Click to download specifications

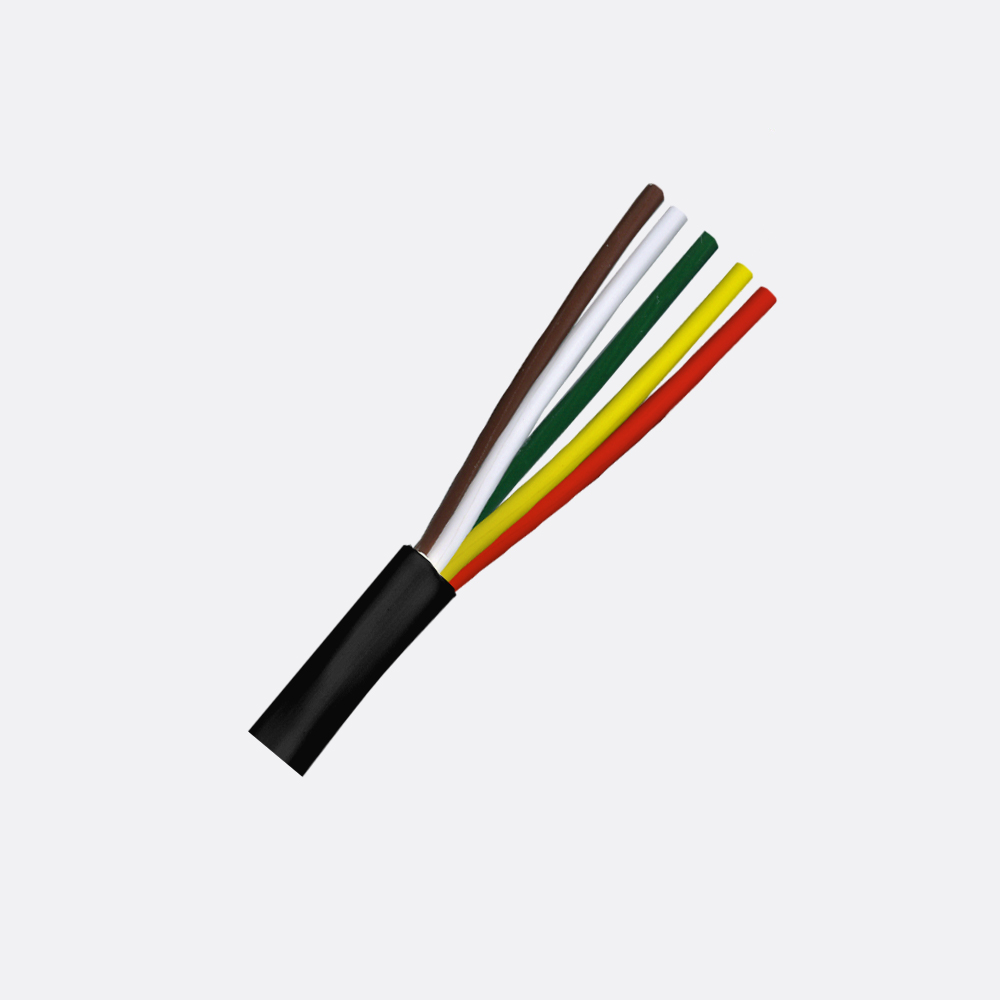

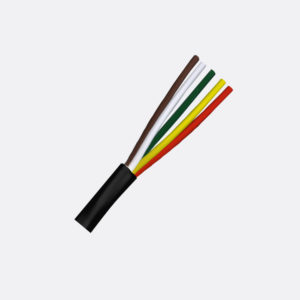

5 Core 23/.32 (1.84mm2). Plain Copper Wire
V90 P.V.C. Insulated and 5V90 P.V.C. Sheathed Trailer cable.
Extra Low Voltage. Not for Mains connection.
RoHS compliant P.V.C. Oxygen Free copper.
Construction
Conductor:
23 strands of 0.32 mm nom. Annealed Copper to AS/NZS1125 drawn from Class 102 copper to AS/NZS1574.
Max. D.C. resistance at 20C: 10.3 ohms / km.
Insulation:
Coloured V90 P.V.C. to AS/NZS3808.
Nominal Diameter: 2.6 mm.
Nominal Wall Thickness: 0.4 mm.
Lay Up: 5 Cores laid up.
1. Brown
2. Red
3. Green
4. White
5. Yellow
Sheath: Coloured P.V.C. type 5V90 to AS/NZS3808.
Nominal Diameter: 8.2 mm,
Nominal Wall Thickness: 0.6 mm,
Typical Ropy Trailer Finish.
Amp Rating @ 30°C: 15
| Derating Factors for Ambient Temperatures °C | |||||
| Temperature | 30 | 40 | 50 | 60 | 70 |
| Factor | 1 | 0.9 | 0.76 | 0.6 | 0.45 |
