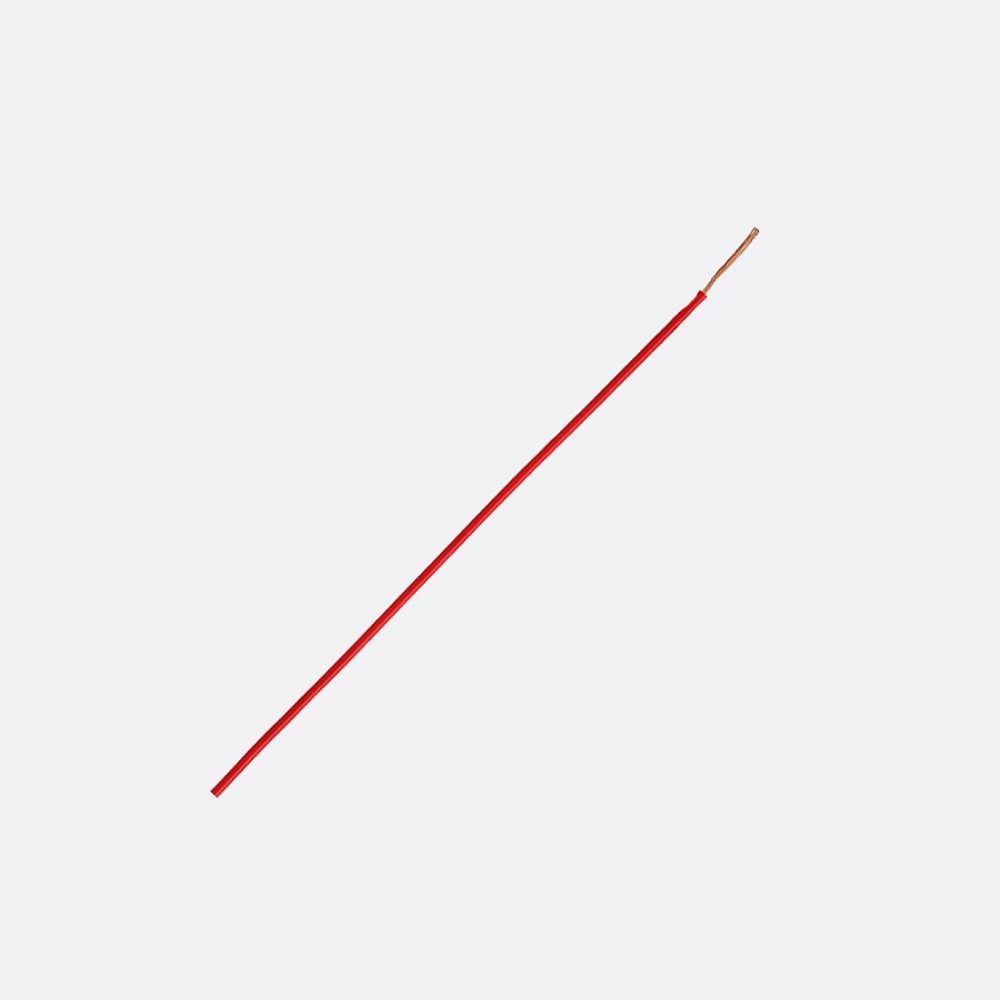

7/.67 (2.5mmsq) Plain Copper Wire IRRIGATION cable.
Extra Low Voltage. UV Stabilised Polypropylene insulated.
Not for Mains Connection.
Construction
Conductor: 7 strands of 0.67 mm Plain Annealed Copper to AS/NZS 1125, drawn from Class 102 copper to AS/NZS 1574.
Max. D.C. resistance at 20C: 7.4 ohms / km.
Insulation: Coloured UV stabilised Polypropylene.
Nominal Diameter: 2.85 mm.
Mean Wall Thickness: 0.4 mm.
