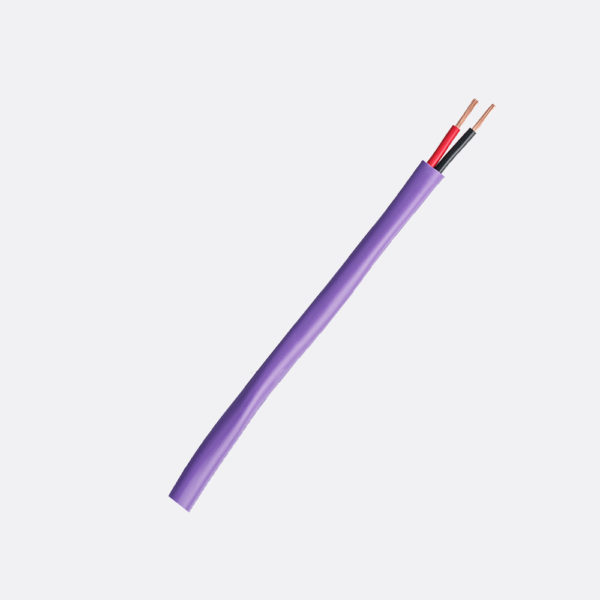

2 x 1.5mm² – LMC02/1.5


V75 PVC insulated

Applications

100v Line PA & Theatre Systems (Residential and Commercial)

Specification Sheet:
  Click to download specifications

2 Core 30/.25 (1.5mm sq nom.) V75 P.V.C insulated.
HBZRH-80FZW Low smoke, Low Halogen P.V.C. sheathed.
Tysonic Speaker Flex.
Oxygen-free copper. RoHS compliant.

Construction

Conductor: 30 strands of 0.25 mm Annealed Copper to AS/NZS1125 drawn from Class 102 copper to AS/NZS1574.
Max. D.C. resistance at 20C : 13.3 ohms / km.

Insulation: Coloured V75 PVC to AS/NZS3808.
Nominal Diameter : 2.2 mm.
Nom. Wall Thickness: 0.60 mm.

Lay Up: 2 Cores.
1. Red
2. Black

Sheath: Coloured P.V.C. type HBZRH-80FZW
Nominal Diameter: 6.5 mm.
Nom. Wall Thickness: 1.0 mm.

Identification: Printed at max 1000mm spacings – Cable to be meter marked, i.e every 1 meter – TYCAB NZ Y.O.M. – 1.5mm² 15AWG 2 CORE 100V LINE SPEAKER CABLE M|M
