2 x 0.4mm² – LEC2142

V75 PVC insulated
Security and Access Control Wiring (Residential and Commercial)

Specification Sheet:
  Click to download specifications

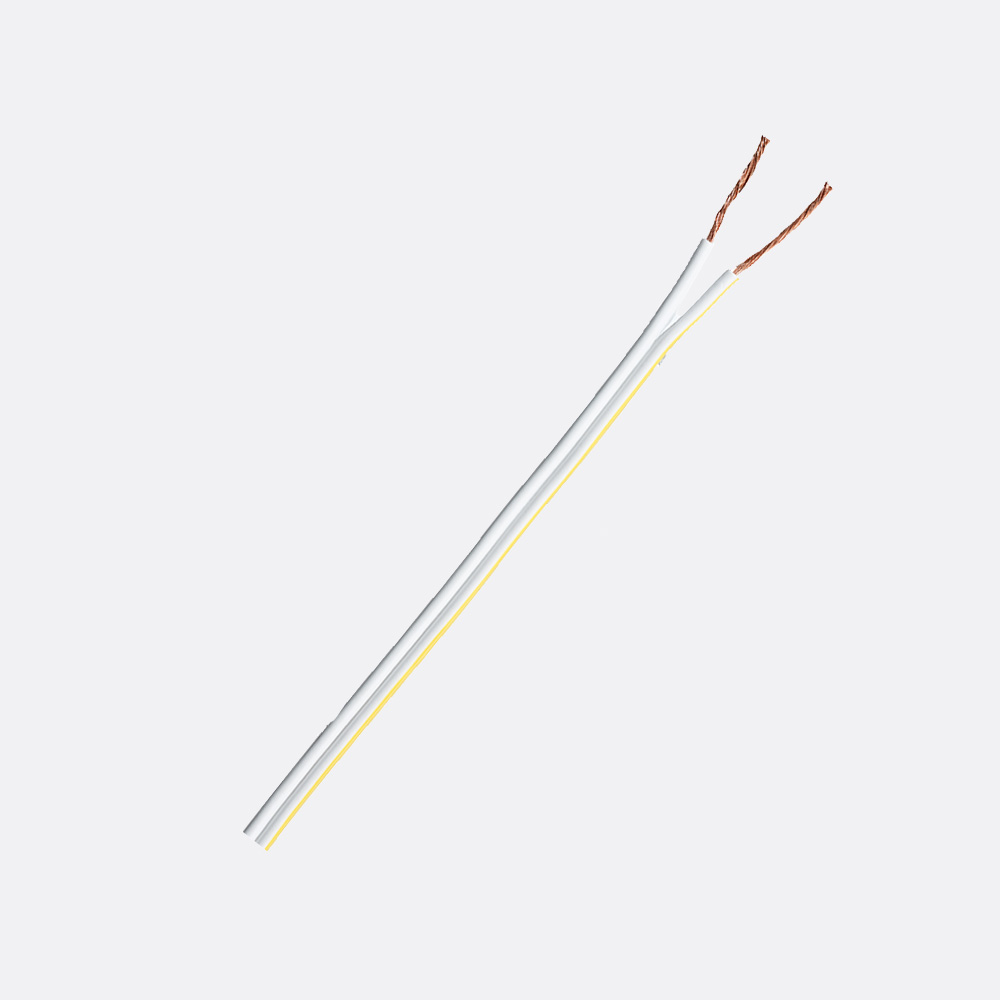

2 Core Parallel Webbed (Figure 8) 14/.2 (0.4mmsq). P.A.C.W.
V75 P.V.C insulated. Extra Low Voltage. Not for mains connection.
Oxygen Free Copper. RoHS compliant PVC.


Conductor: 14 strands of 0.2mm nom. Plain Annealed Copper to AS/NZS 1125 drawn from Class 102 copper to AS/NZS 1574.
Max. D.C. resistance at 20C: 45 ohms / km.

Insulation: Coloured 75C P.V.C. to AS/NZS 3808.
Parallel Webbed (Figure 8) construction.
Nominal Diameter: 1.6 x 3.3 mm.
Nominal Wall Thickness: 0.36 mm.

Identification: Polarity ribs on one leg. Printed: RACOL SECURITY LEC2142 ACA N1155
