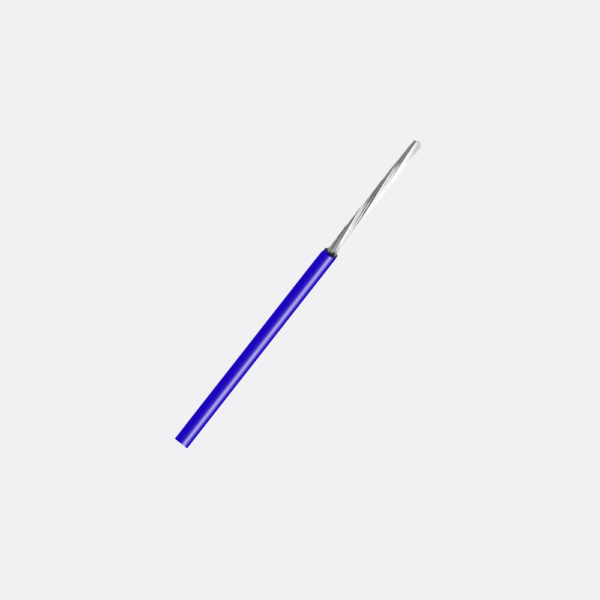

1 x 0.5mm² – HVT110025


V90HT PVC insulated

Applications
Control Panels, Automotive, Meters, Ovens, and Internal wiring.

Specification Sheet:
  Click to download specifications

10/.25 (0.5mmsq) 20AWG Tinned Annealed Copper
V90HT PVC Insulated, Extra Low Voltage.
Not for MAINS outlet connection.
Oxygen-Free Copper. RoHS Compliant.

Construction

Conductor: 10 strands of 0.25mm nom. Tinned Annealed Copper drawn from Class 110A copper to AS/NZS 1574.
Max. D.C. resistance at 20C: 38 ohms / km.

Insulation: Coloured P.V.C. type V90HT to AS/NZS 3808.
Nominal Diameter: 1.80 mm.
Nominal Wall Thickness: 0.38 mm.
