Specification Sheet:
Click to download specifications

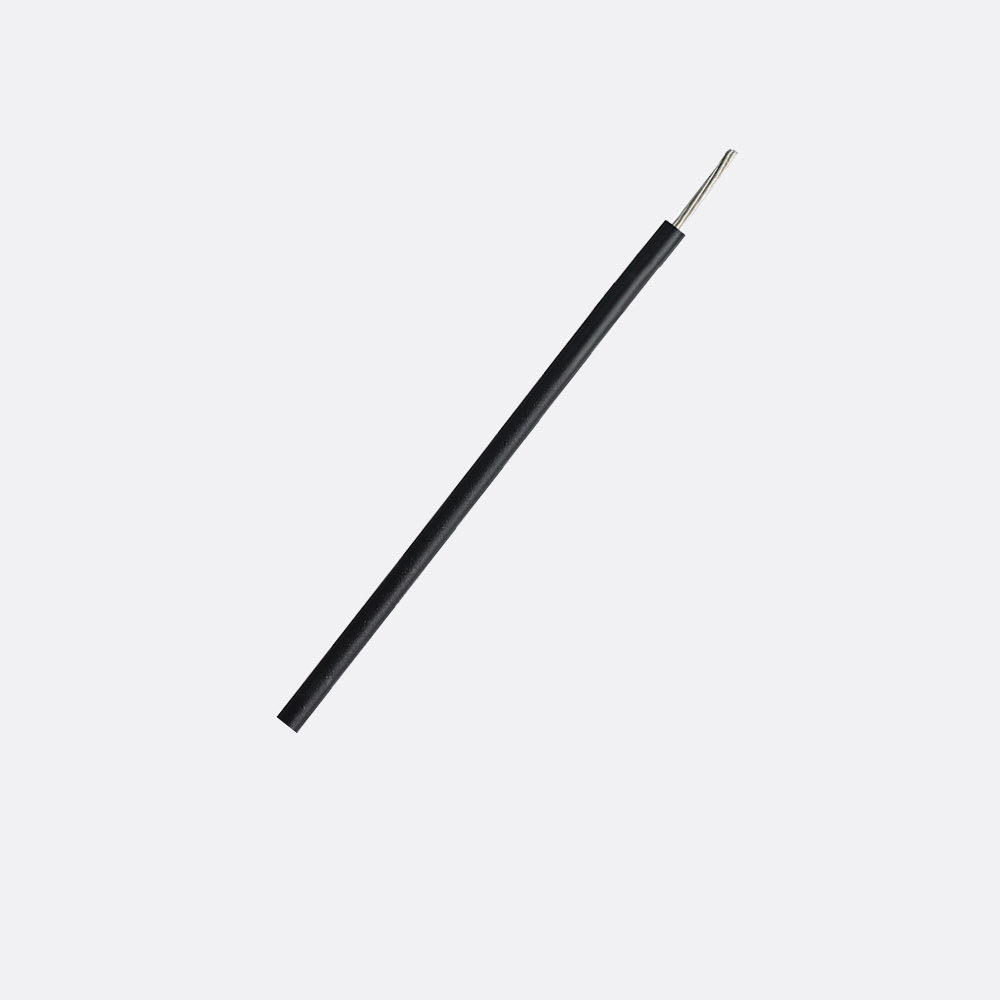

7/.5 (1.5mmsq) TINNED annealed copper.
Polypropylene insulated.
Extra-low voltage cable.
Construction
Conductor: 7 strands of 0.50 mm nom. Tinned Annealed Copper to AS1125, drawn from Class 110A copper to AS1574.
Max. D.C. resistance at 20C : 13.8 ohms / klm.
Insulation: Polypropylene.
Nominal Diameter: 3.60 mm.
Nom. Wall Thickness: 1.00 mm.
Min. at any point: 0.80 mm.
Made to customer’s design.
