Specification Sheet:
Click to download specifications

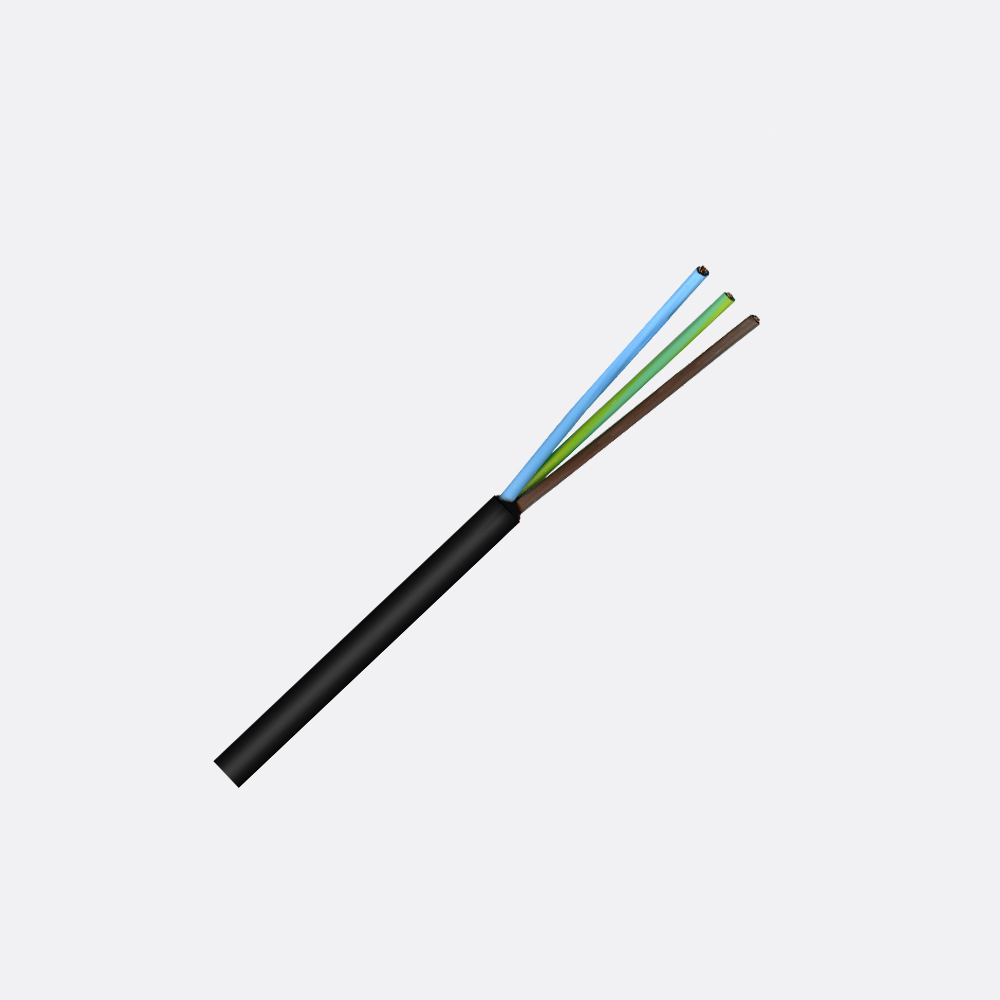

3 Core 24/.20 (.75 mm sq ,7.5amp) .P.C.W. V75 PVC insulated.
4V75 P.V.C. sheathed. Cable.
Generally 250/440 Volt.
Construction
Conductor: 24 strands of 0.20 mm Annealed Copper to AS1125 drawn from Class 110A copper to AS1574.
Max. D.C. resistance at 20C : 26.07 ohms / klm.
Insulation: Coloured V75 PVC to AS3808 .
Nominal Diameter: 2.3 mm
Nom. Wall Thickness: 0.6 mm
Lay Up: 3 Cores laid up.
1. Red
2. Black.
3. White
Sheath: Coloured P.V.C. type 4V75 to AS3808.
Nominal Diameter: 6.65 mm.
Nom. Wall Thickness: 0.8 mm.
