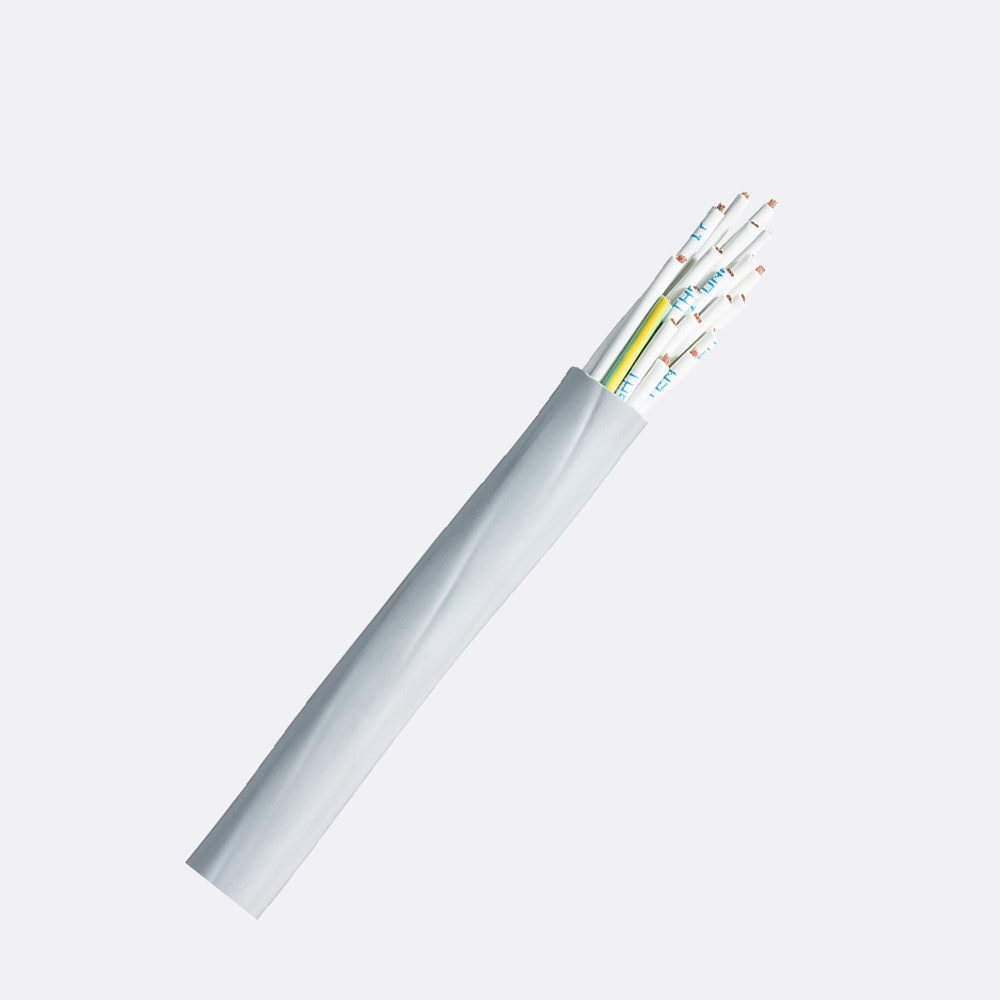

19 x 2.5mm² – HMC19/2.5


450/750V V90HT PVC insulated
Applications
Cable used in Control, Signal, Lighting and Entertainment.

Specification Sheet:
  Click to download specifications

18 Core + Earth 54/.25 (2.5mmsq). T.C.W. V90HT PVC
insulated. White cores numbered V90HT P.V.C. sheathed.
Control cable. 450/750 volt to AS5000.3
Oxygen Free copper. RoHS compliant PVC.

Construction

Conductor: 54 strands of 0.25 mm nom. Tinned Annealed Copper to AS1125 drawn from Class 102 copper to AS1574.
Max. D.C. resistance at 20C : 8 ohms / km.

Insulation: White V90HT PVC to AS3808.
Nominal Diameter: 3.6 mm.
Nominal Wall Thickness: 0.6 mm.

Lay Up: 19 Cores laid up
1. White No1
2. White No2
3. White No3
4. White No4
5. White No5
6. White No6
7. White No7
8. White No8
9. White No9
10. White No10
11. White No11
12. White No12
13. White No13
14. White No14
15. White No15
16. White No16
17. White No17
18. White No18
19. Green/Yellow

Sheath: Coloured P.V.C. type V90HT to AS3808.
Nominal Diameter: 21.2 mm.
Nominal Wall Thickness: 1.6 mm.

Identification: Printed on sheath at approx. 500mm intervals – TYCAB 19 X 2.5MMSQ 2019 V90HT ELECTRIC CABLE 450/750V.
