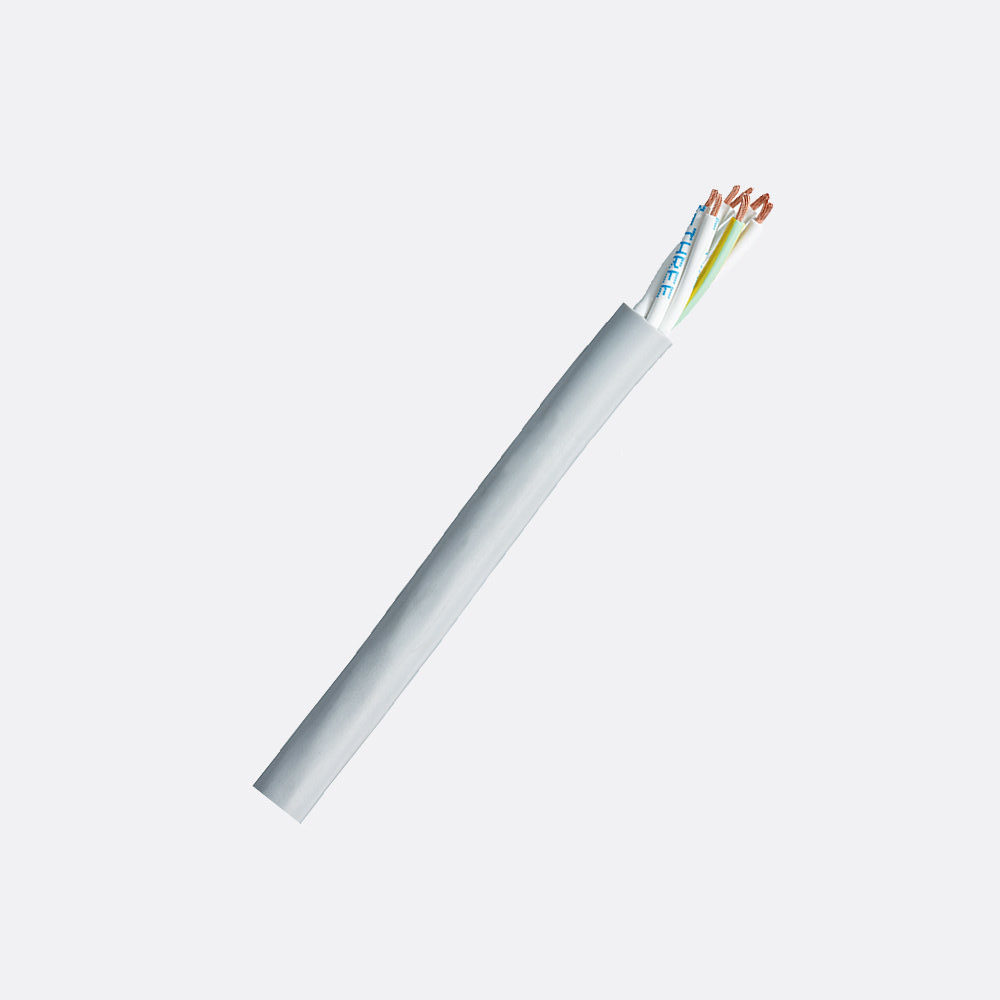

7 x 1.5mm² – HMC07/1.5

450/750V V90HT PVC insulated
Cable used in Control, Signal, Lighting and Entertainment.

Specification Sheet:
  Click to download specifications

6 Core + Earth 30/.25 (1.5mmsq). T.C.W. V90HT PVC
insulated. White cores numbered V90HT P.V.C. sheathed.
Control cable. 450/750 volt to AS5000.3
Oxygen Free copper. RoHS compliant PVC.


Conductor: 30 strands of 0.25 mm nom. Tinned Annealed Copper to AS1125 drawn from Class 102 copper to AS1574.
Max. D.C. resistance at 20C : 13.3 ohms / km.

Insulation: White V90HT PVC to AS3808.
Nominal Diameter: 2.7 mm.
Nominal Wall Thickness: 0.6 mm.

Lay Up: 7 Cores laid up
1. White No1
2. White No2
3. White No3
4. White No4
5. White No5
6. White No6
7. Green/Yellow

Sheath: Coloured P.V.C. type V90HT to AS3808.
Nominal Diameter: 10.9 mm.
Nominal Wall Thickness: 1.4 mm.

Identification: Printed on sheath at approx. 500mm intervals – TYCAB 7 X 1.5MMSQ 2019 V90HT ELECTRIC CABLE 450/750V.
