12 x 0.22mm² – DPF12702


Data Grade Polypropylene insulated RS422
Applications
Data Communication, Balanced Mode, Low Capacitance.

Specification Sheet:
  Click to download specifications

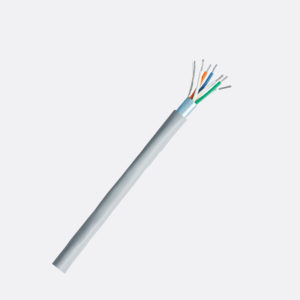

6 Pair 7/.2 (0.2 mm sq) 24AWG .T.A.C.W. Polypropylene insulated.
Aluminium Laminate tape screened.PVC sheathed.Data cable.

Construction

Conductor: 7 strands of 0.2 mm Tinned Annealed Copper to AS1125 drawn from Class 110A copper to AS1574.
Max. D.C. resistance at 20C: 89 ohms / klm.

Insulation: Coloured Data Grade Polypropylene.
Nominal Diameter: 1.2 mm.
Nom. Wall Thickness: 0.3 mm.

Lay Up: 6 Pairs laid up.
Pair 1. Blue + White/Blue
Pair 2. Orange + White/Orange
Pair 3 Green + White/Green
Pair 4 Brown + White/Brown
Pair 5 Grey + White/Grey
Pair 6 Blue + Red/Blue

Screen: Aluminium / Polyester Laminate tape in constant contact with a 7/.2 TACW drain wire.

Sheath: Coloured 4V75 PVC to AS3808.
Nominal Diameter: 7.8 mm.
Nominal Wall Thickness: 0.76 mm.

Typical Capacitance: 55 pF/m

Identification: At nominally 1M spacings printed on sheath: “TYCAB AUSTRALIA MULTIPAIR DATA DPF12702 CCL A93/CA/0111”
