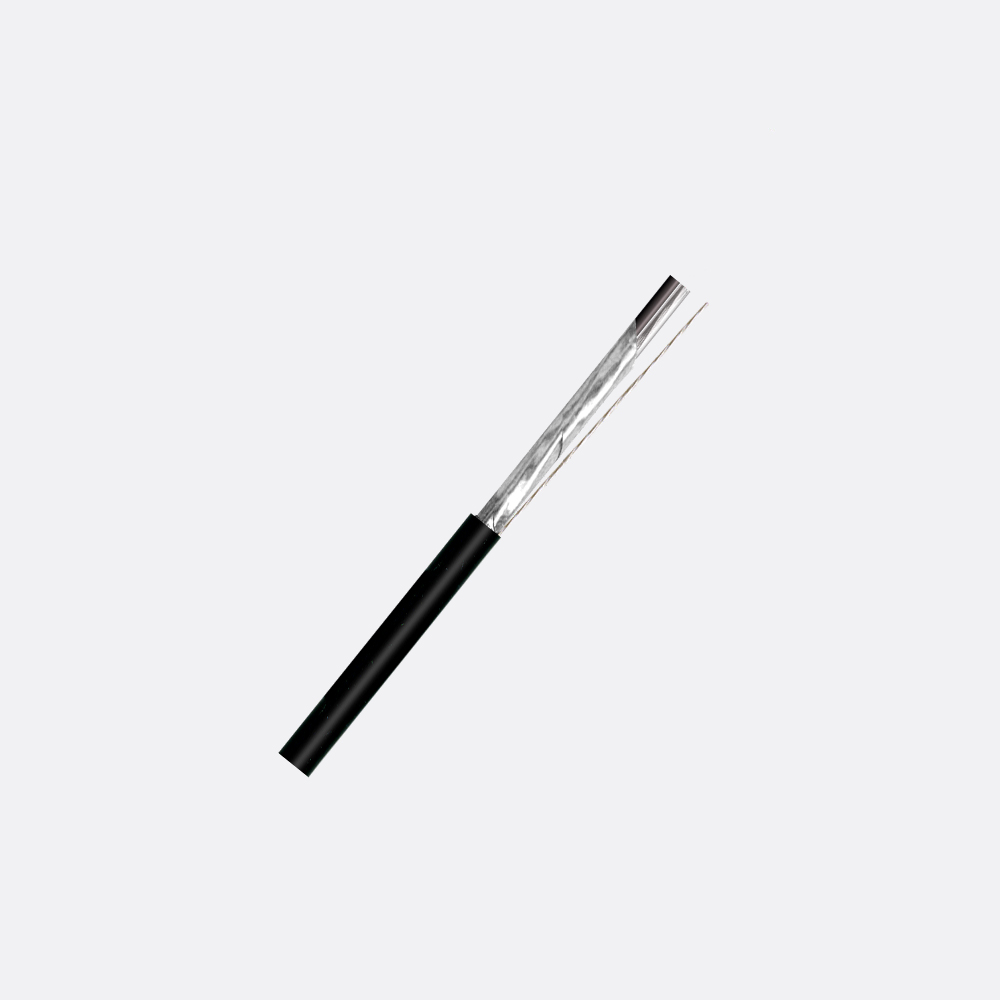

3 x 0.85mm² – DMF316025


Data Grade Polyethylene insulated

Applications
Data Communication, Industrial Equipment Control.

Specification Sheet:
  Click to download specifications

3 core 16/.25 TCW (0.85mmsq) 18AWG Polyethylene insulated, Aluminium / Polyester tape screened including a 16/.2TCW drain wire.
75c PVC sheathed. 300 Volt sheath.

Construction

Conductor: 16 strands of 0.25 mm nom. Tinned Annealed Copper to AS1125 drawn from Class 110A copper to AS1574.
Max. D.C. resistance at 20C : 23 ohms / klm.

Insulation: Coloured Polyethylene.
Nominal Diameter: 2.2 mm.
Nom. Wall Thickness: 0.46 mm.

Lay Up: 3 cores twisted L/H lay.
1.NATURAL
2..BLACK
3. RED

Screen: Aluminium / Polyester tape screen in constant contact with a 16/.2 TACW drain wire.

Sheath: Coloured P.V.C. to AS3808 type V75.
Nominal Diameter: 6.35 mm.
Nom. Wall Thickness: 0.76 mm.

Typical Capacitance: 79pF/m

Identification: Meter marked
