Specification Sheet:
Click to download specifications

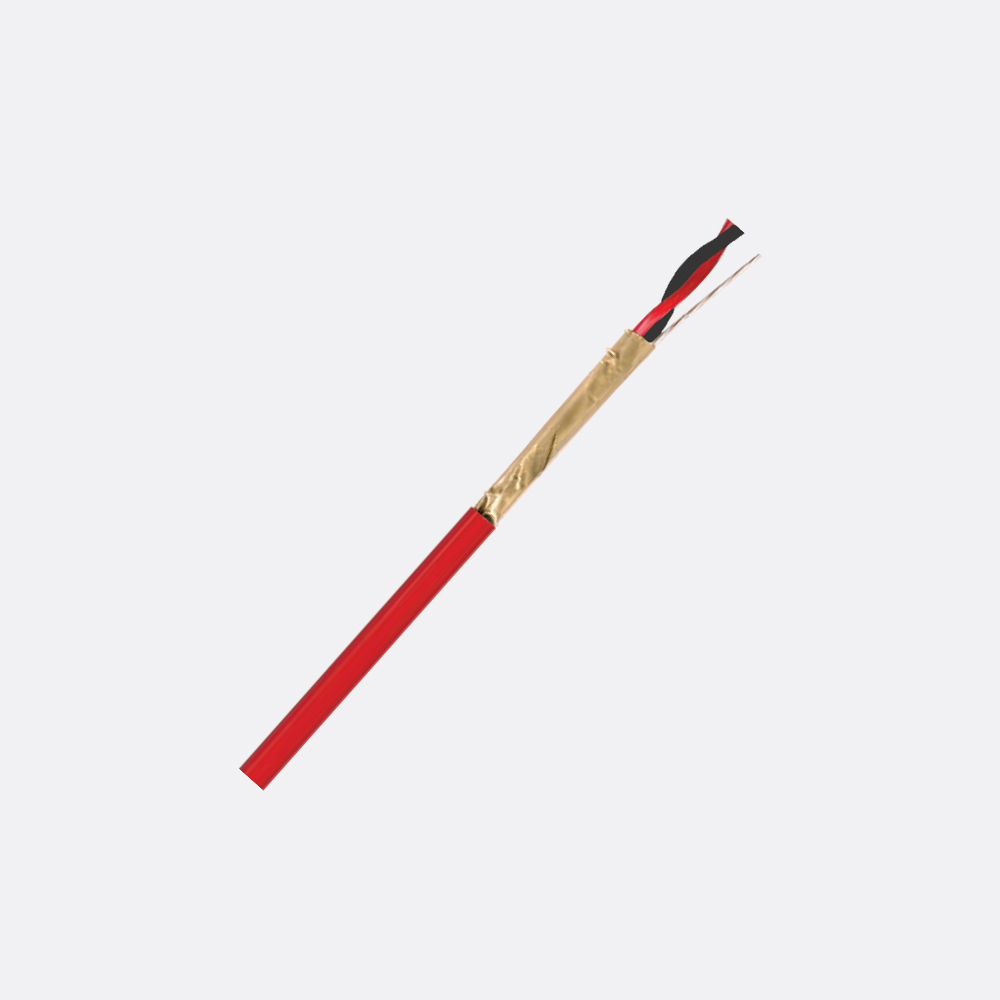

2 Core 16/.32 (1.29mm2 nom.) .T.A.C.W.
V90 P.V.C Insulated
Aluminium / Polyester tape screened including a 7/.25 tinned drain wire 5V90 P.V.C. Sheathed. Twisted Fire Alarm Cable.
450/750 Volt Generally to AS/NZS5000.2.
Oxygen-free copper. RoHS compliant. Not for mains outlet connection.
Construction
Conductor: 16 strands of 0.32 mm Tinned Annealed Copper to AS/NZS 1125 drawn from Class 102 copper to AS/NZS 1574.
Max. D.C. resistance at 20C: 13.8 ohms / km.
Insulation: Coloured V90 PVC to AS/NZS 3808.
Nominal Diameter: 2.7 mm.
Nominal Wall Thickness: 0.6 mm.
Lay Up: 2 Cores Twisted.
1. Red plus
2. Black
Screen: Aluminium / Polyester tape screen in contact along its length with a 7/.25 TACW drain wire.
Sheath: Coloured P.V.C. Type 5V90 to AS/NZS 3808.
Nominal Diameter: 7.9 mm.
Nominal Wall Thickness: 1.2 mm.
Typical ropy finish.
Identification: Printed and metre-marked at max 1000mm spacings. TYCAB 2015 V90 PVC ELECTRIC CABLE 450/750V 2×1.25mm2 SCREENED FIRE ALARM DMAC216032
