2 x 1.5mm² – BEM2705


V90 PVC insulated 450/750V

Applications
Power and Lighting circuits up to 450/750V

Specification Sheet:
  Click to download specifications

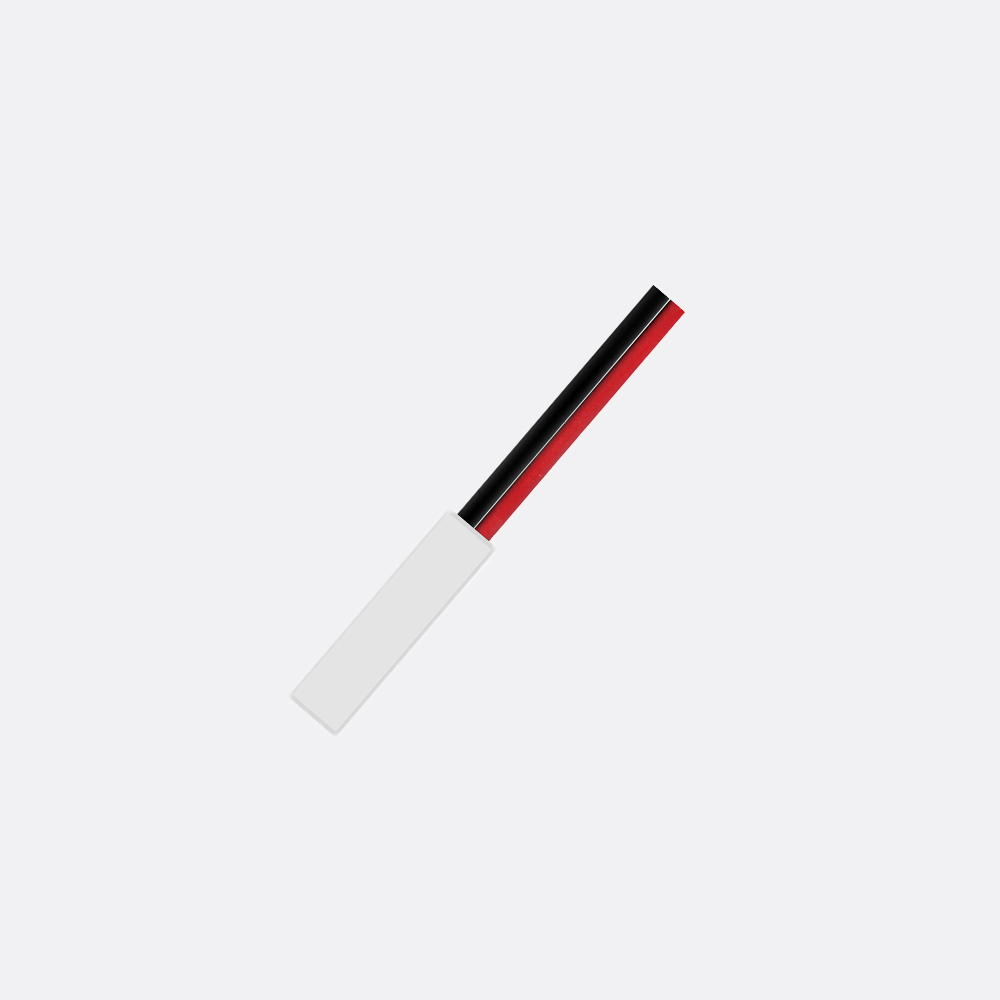

2 Core Flat Twin 7/0.5 (1.5mm2 nom.). P.A.C.W.
V90 Insulated and 3V90 P.V.C. Sheathed.
Building Cable 450/750 Volt to AS/NZS 5000.2.
Oxygen-Free Copper. RoHS Compliant.
TUV AUTHORISED MARKING: TUV022085EA

Construction

Conductor: 7 strands of 0.5 mm nom. Plain Annealed Copper to AS/NZS 1125 Class 2.
Max. D.C. resistance at 20C: 13.6 ohms / km.

Insulation: Coloured V90 P.V.C. to AS/NZS 3808.
Nominal Diameter: 2.7 mm.
Nominal Wall Thickness: 0.6 mm.

Core Colours:
1. Red
2. Black
Laid parallel

Sheath:

Coloured 3V90 P.V.C. to AS/NZS 3808. Flat configuration.
Nominal Dimensions: 4.6 x 7.3 mm.
Nominal Wall Thickness: 0.9 mm.

Identification: Printed on the sheath at maximum distance of 550mm: TYCAB AUSTRALIA 2017 V90 ELECTRIC CABLE 450/750V TUV022085EA BEM2705 2X1.5MM2 and Metre Marked.
