Specification Sheet:
Click to download specifications

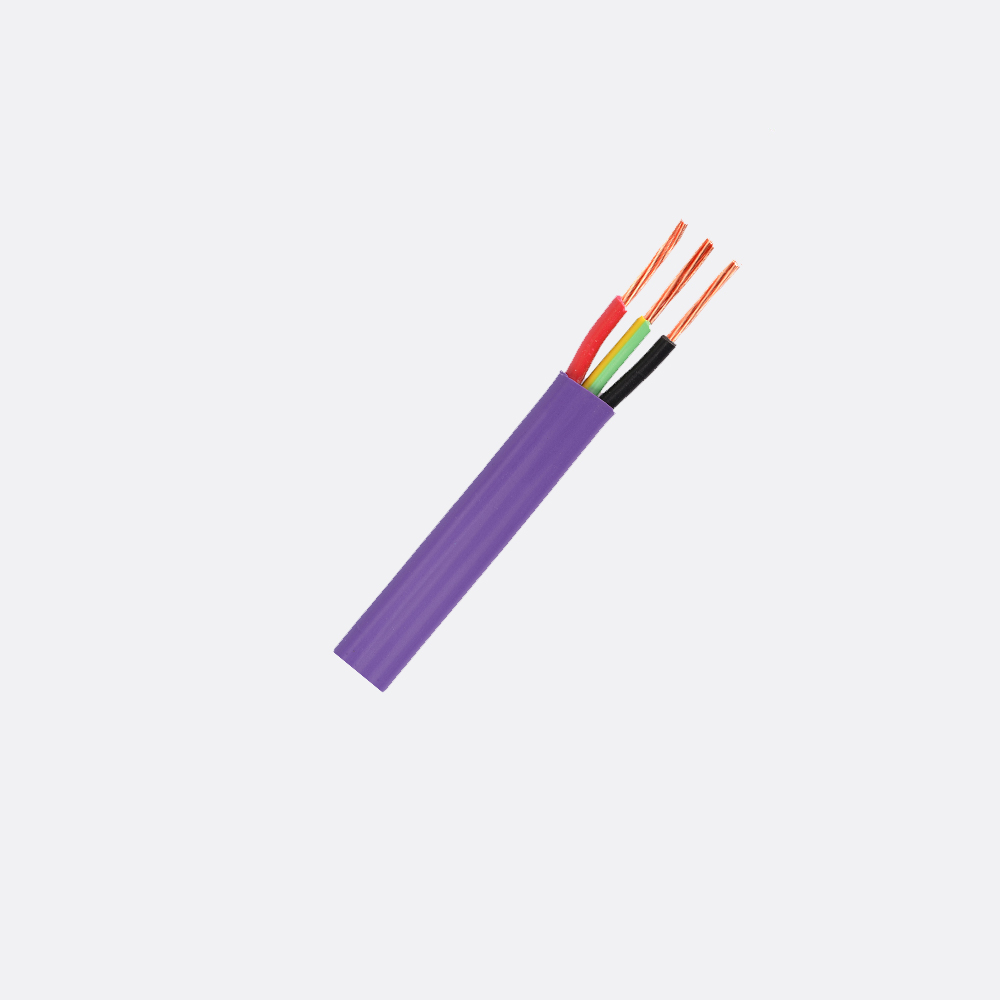

3 Core Flat: Twin and Earth 2 x7/1.04 (6 mm2) plus 1 x 7/.67 (2.5mmsq) Earth
P.A.C.W. Non-Migratory P.V.C. Insulated and Sheathed.
Building Cable 450/750 volt to AS/NZS 5000.2.
Oxygen-Free Copper. RoHS Compliant.
Current Rating
Unenclosed in air: 46
Completely surrounded by thermal insulation: 22
Unenclosed Partially surrounded by insulation: 34
Electrical characteristics
Voltage Drop Single Phase mV/Am at 75°C Laid Flat: 7.50
Voltage Drop Three Phase mV/Am at 75°C Laid Flat: 6.49
Construction
Conductor:
PHASE: 7 strands of 1.04 mm Plain Annealed Copper to AS1125 drawn from Class 102 copper to AS1574.
Max. D.C. resistance at 20C: 4.61 ohms / km.
EARTH: 7 strands of 0.67 mm Plain Annealed Copper to AS1125 drawn From Class 102 copper to AS1574.
Max. D.C. resistance at 20C: 7.41 ohms / km.
Insulation:
ACTIVE & NEUTRAL: Coloured Non-Migratory P.V.C. to AS/NZS 3808.
Nominal Diameter: 4.8mm.
Nom. Wall Thickness: 0.8mm.
EARTH: Coloured V90. To AS/NZS 3808.
Nominal Diameter: 3.4mm.
Nom. Wall Thickness: 0.7mm.
Core Colours:
ACTIVE: 1. Red
NEUTRAL: 2. Black
EARTH: 3. Lt Green / Yellow (in centre)
Laid parallel.
Sheath: Coloured Non-Migratory P.V.C. to AS/NZS 3808. Flat configuration.
Nominal Dimensions: 7.0 x 15.3 mm.
Nom. Wall Thickness: 1.1 mm.
Identification: Printed on the sheath. TYCAB 2017 ELECTRIC CABLE V90 450/750V – BED37104 6MM2 T + 2.5MM2 E.
