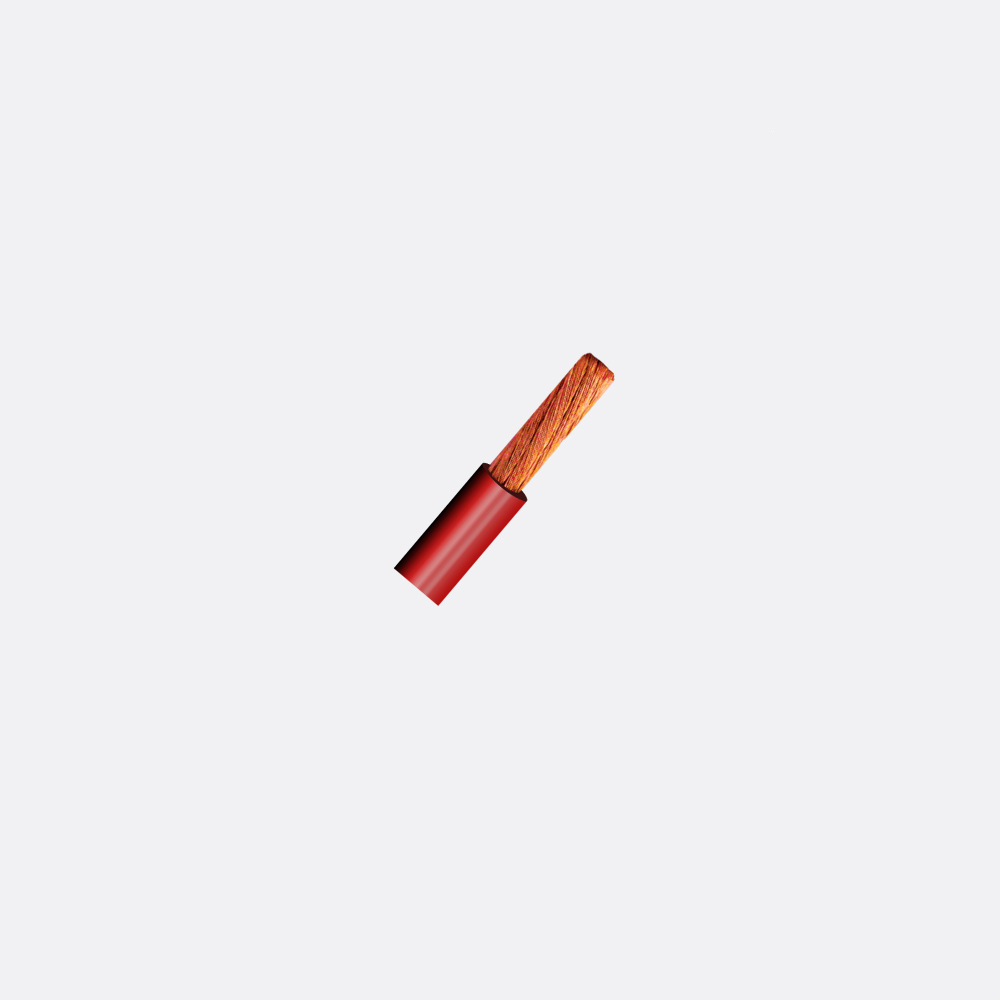

1 x 8mm² – ABC111203 (Auto 158)


V90 PVC insulated

Applications
Battery and Starter cable

Specification Sheet:
  Click to download specifications

96/.32 (7.7mmsq – 8 B&S) Plain Copper Automotive Battery cable.
60Volt V90 PVC. Not for Mains Connection.
Oxygen Free Copper. RoHS compliant PVC.

Construction

Conductor: 96 strands of 0.32mm Plain Annealed Copper to AS/NZS1125 drawn from Class 102 copper to AS/NZS1574.
Max. D.C. resistance at 20C: 2.4 ohms / km.
Typical conductor diameter: 3.7 mm.

Insulation: Coloured P.V.C. type V90 to AS/NZS 3808.
Nominal Diameter: 5.5 mm.
Nominal Wall Thickness: 0.9 mm.

Reference Standards:
AS/NZS3808 PVC compound type.
AS/NZS1125 Conductor Tolerances.
AS/NZS1574 Copper Type.
SAE J1127 Minimum cross-section conductor area and minimum wall thickness.

Amp Rating @ 30°C: 74

Derating Factors for Ambient Temperatures °C
Temperature 30 40 50 60 70
Factor 1 0.9 0.76 0.6 0.45
