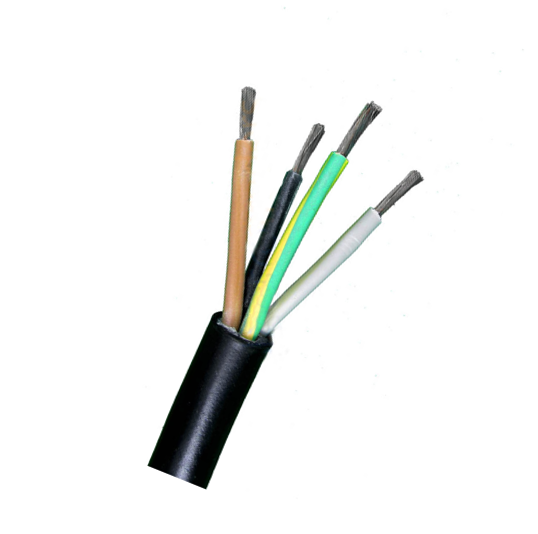

4 x 2.5mm² – FRX04/2.5

0.6/1kV EPR Rubber Insulated

Hazardous Areas, Lighting and Entertainment, Marine, Power, Pumps and Energy Chains. Submersible to 200m’s, H07RN-F

Specification Sheet:
  Click to download specifications

Product Specifications
Conductor: Tinned Copper to AS1125 Drawn from Class 5 Copper AS1574
Insulation: Coloured EPR Rubber Insulation to AS/NZS3808
Sheath: CPE Rubber Sheath Relevant Standard: AS/NZS 5000.1

Core Configurations:
4 Core – 1. Blue, 2. Brown, 3. Grey, 4. Green/Yellow
