Specification Sheet:
Click to download specifications

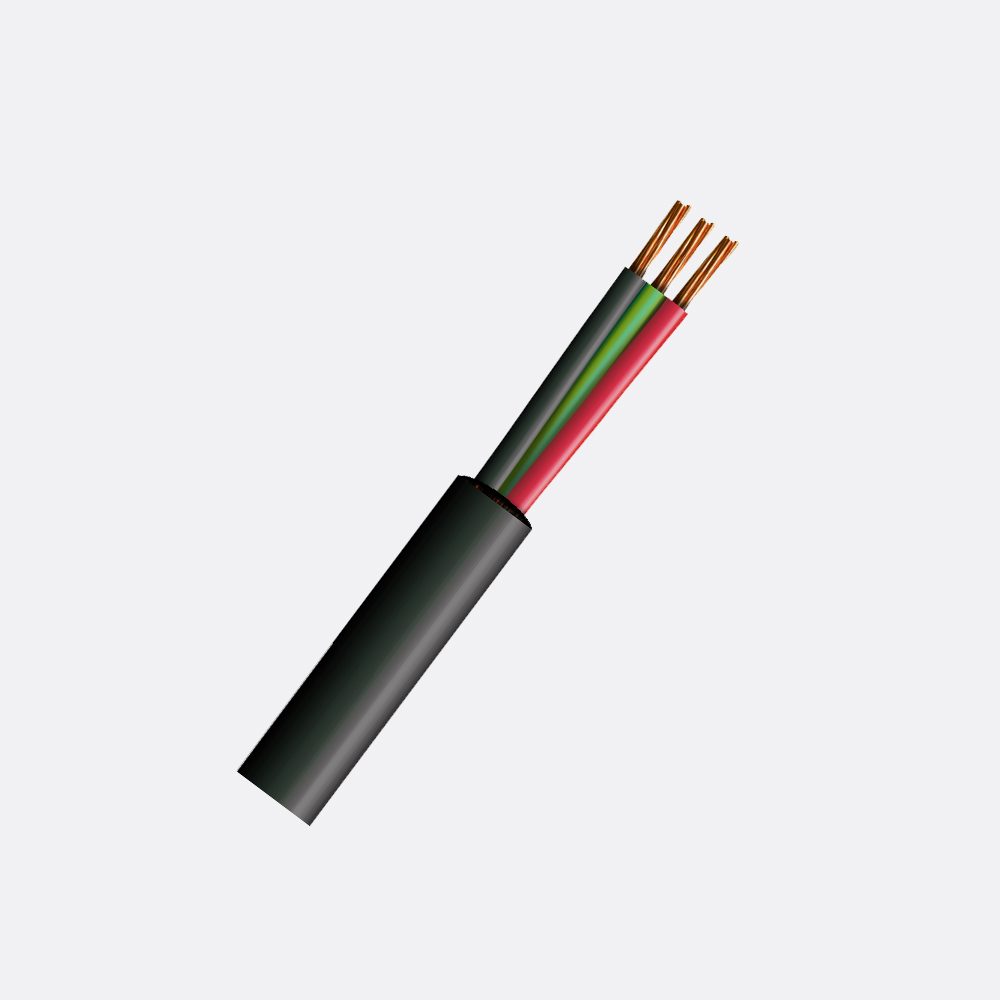

2 Core 7/1.35 (10mmsq) plus 7/.85 (4mmsq) Earth.
P.C.W. X-90 PVC Insulated and 5V90 P.V.C. Sheathed.
Circular Building Cable 0.6/1Kv to AS/NZS 5000.1.
Oxygen-Free Copper. RoHS Compliant.
Construction
Conductor:
PHASE: 7 strands of 1.35mm nom. Plain Annealed Copper to AS1125 drawn from Class 102 copper to AS1574.
Max. D.C. resistance at 20C: 1.83 ohms / km.
EARTH: 7 strands of 0.85mm nom. Plain Annealed Copper to AS1125 drawn from Class 102 copper to AS1574.
Max. D.C. resistance at 20C: 4.61 ohms / km.
Insulation:
ACTIVE & NEUTRAL: Coloured X-90 to AS/NZS 3808.
Nominal Diameter: 5.5 mm.
Nominal Wall Thickness: 0.7 mm.
EARTH: Coloured X-90 to AS/NZS 3808.
Nominal Diameter: 4.1 mm.
Nominal Wall Thickness: 0.7 mm.
Lay Up: 3 Cores laid up.
ACTIVE:
1. Red
2. White
EARTH:
3. Lt Green / Yellow
Around a polypropylene centre filler.
Sheath: Coloured P.V.C. type 5V90 to AS/NZS 3808.
Target Diameter: 15.3 mm.
Nominal Wall Thickness: 1.8 mm.
Identification: Printed on the sheath – TYCAB (YEAR 2023) ELECTRIC CABLE 5V-90 0.6/1Kv – BMM37135 2 x 10mmsq + 4mmsq E.
