Specification Sheet:
Click to download specifications

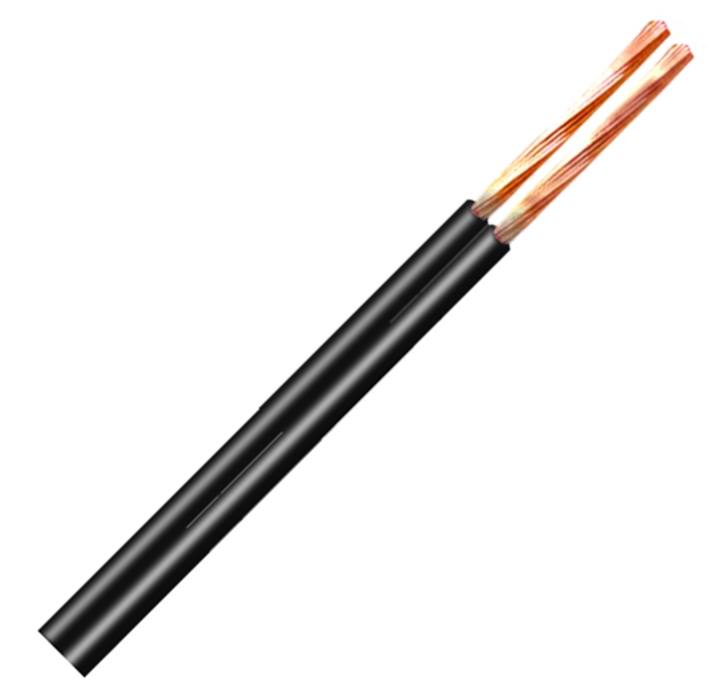

2 Core Parallel Webbed (Figure 8) 24/.2 (0.75 mmsq). P.A.C.W.
V90 P.V.C insulated, 250/250 volt to AS/NZS 3191.
ESV approval V98005
Oxygen Free copper. RoHS compliant PVC.
Construction
Conductor: 24 strands of 0.2mm nom. Plain Annealed Copper to AS/NZS 1125
drawn from Class 110 copper to AS/NZS 1574.
Max. D.C. resistance at 20C: 26.7 ohms / km.
Insulation: Coloured V75 PVC to AS/NZS3808. Parallel Webbed (Figure 8) construction
Nominal Diameter: 2.8 x 6.0 mm
Nominal Wall Thickness: 0.8 mm
Identification: Printed in contrasting colour on the Insulation at intervals not exceeding 500mm. “TYCAB V90 APP V98005 250/250V AUSTEL APP”
