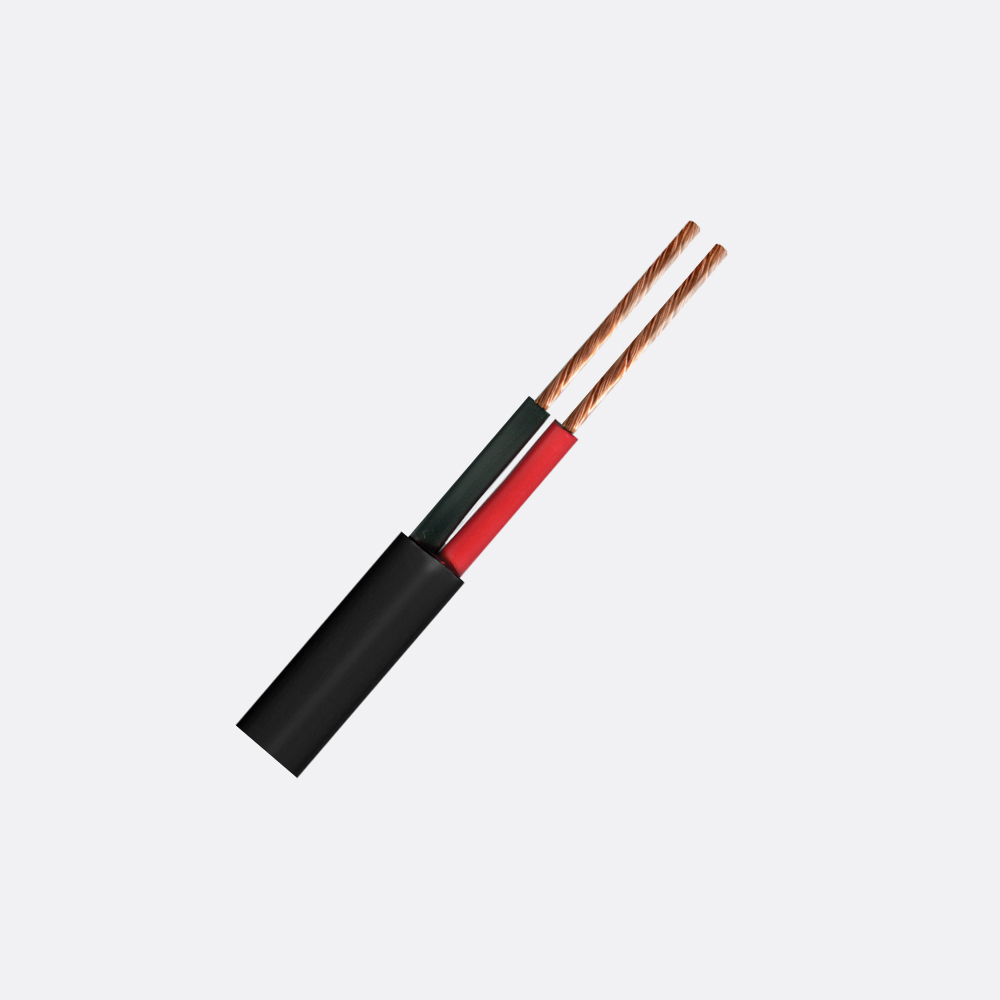

2 Core Flat Twin Sheathed 14/.32 (1.13 mm sq). P.A.C.W.
V90 Insulated & 5V90 Sheathed Automotive.
Extra Low Voltage, Not for Mains Connection.
Construction
Conductor: 14 strands of 0.32mm Plain Annealed Copper to AS/NZS1125 drawn from Class 110A copper to AS/NZS1574.
Max. D.C. resistance at 20C: 16.5 ohms / km.
Insulation: Coloured V90 P.V.C. to AS/NZS3808.
Nominal Diameter: 2.15 mm.
Nominal Wall Thickness: 0.4 mm.
Core Colours:
1. Red
2. Black
Laid parallel
Sheath:Coloured 5V90 to AS/NZS3808 Flat configuration.
Nominal Dimensions: 3.3 x 5.5 mm.
Nominal Wall Thickness: 0.6 mm.
Amp Rating @ 30°C: 16
| Derating Factors for Ambient Temperatures °C | |||||
| Temperature | 30 | 40 | 50 | 60 | 70 |
| Factor | 1 | 0.9 | 0.76 | 0.6 | 0.45 |
